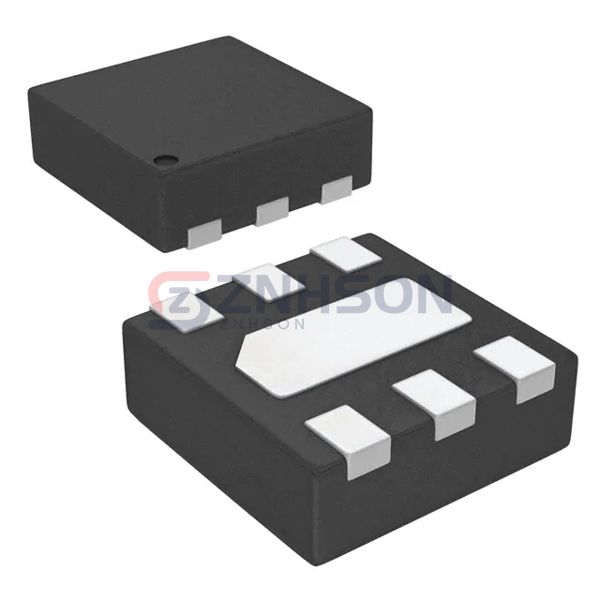

RCLAMP0504PATCT
Semtech Corporation
Semtech Corporation
TVS DIODE 5VWM 18VC SLP1616P6
$1.06
Available to order
Reference Price (USD)
3,000+
$0.47040
6,000+
$0.44800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the RCLAMP0504PATCT TVS diode by Semtech Corporation. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the RCLAMP0504PATCT are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the RCLAMP0504PATCT can shield HDMI ports in consumer electronics from voltage surges. Trust Semtech Corporation's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Steering (Rail to Rail)
- Unidirectional Channels: 4
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 6V
- Voltage - Clamping (Max) @ Ipp: 18V
- Current - Peak Pulse (10/1000µs): 6A (8/20µs)
- Power - Peak Pulse: 150W
- Power Line Protection: Yes
- Applications: Ethernet, Multimedia Card Interface, USB OTG
- Capacitance @ Frequency: 1.9pF @ 1MHz
- Operating Temperature: -55°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 6-UFDFN Exposed Pad
- Supplier Device Package: SLP1616P6 (1.6x1.6)
