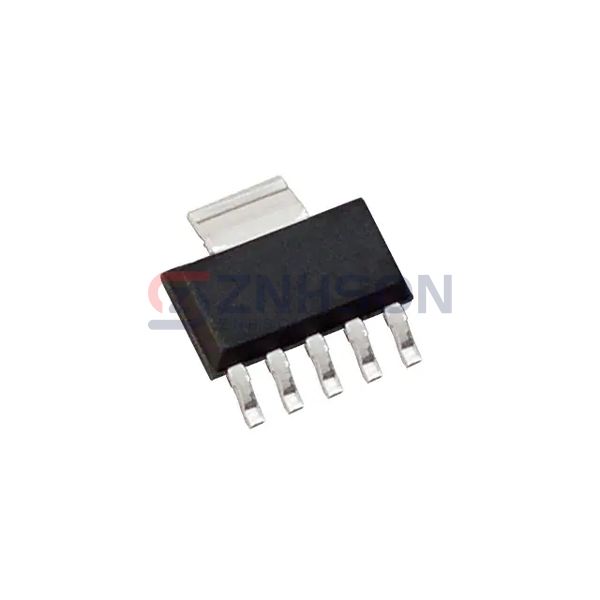

REG103GA-A/2K5
Texas Instruments
Texas Instruments
IC REG LIN POS ADJ 500MA SOT223
$3.33
Available to order
Reference Price (USD)
2,500+
$2.71586
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the REG103GA-A/2K5 linear voltage regulator IC by Texas Instruments, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this REG103GA-A/2K5 model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.
Specifications
- Product Status: Not For New Designs
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 15V
- Voltage - Output (Min/Fixed): 1.295V
- Voltage - Output (Max): 5.5V
- Voltage Dropout (Max): 0.28V @ 500mA
- Current - Output: 500mA
- Current - Quiescent (Iq): 0.7 mA
- Current - Supply (Max): 1.3 mA
- PSRR: 65dB (120Hz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: SOT-223-6
- Supplier Device Package: SOT-223-6
Related Products
Nisshinbo Micro Devices Inc.
RP171Q322B-TR-FE
Nisshinbo Micro Devices Inc.
RP152N045B-TR-FE
onsemi

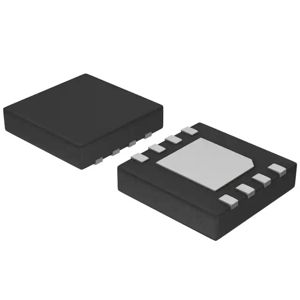

NCV59151MN33TYG
Texas Instruments

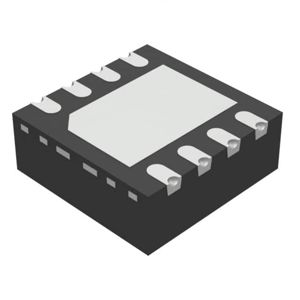

TLV76760QWDRBRQ1
ABLIC Inc.
S-13R1E19-M5T1U3
Analog Devices Inc./Maxim Integrated

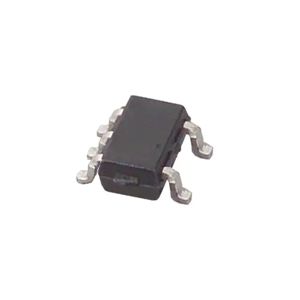

MAX8891EXK30+T
Texas Instruments

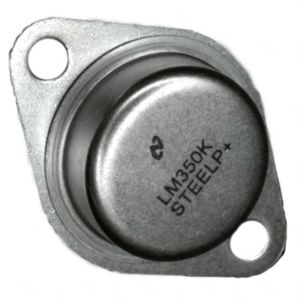

LM138K STEEL
ABLIC Inc.
S-1122B49MC-L9ITFG
onsemi

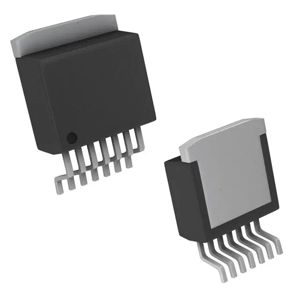

NCV8506D2T33R4G
