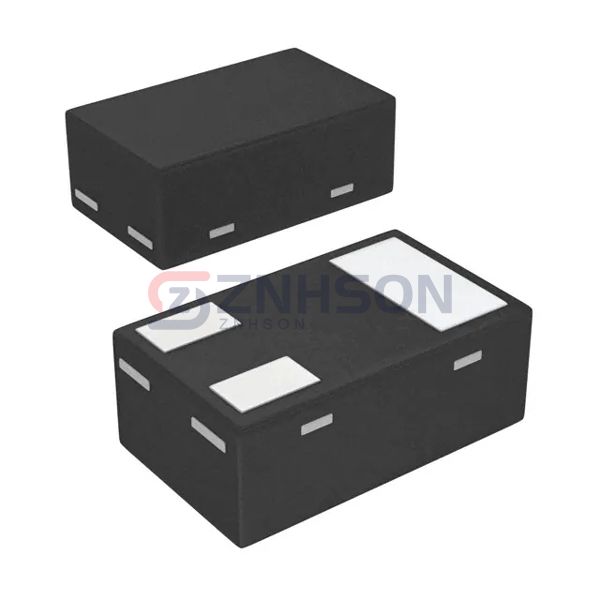

RN1101ACT(TPL3)
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
TRANS PREBIAS NPN 50V 0.08A CST3
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your PCB layout with Toshiba Semiconductor and Storage's space-saving RN1101ACT(TPL3). This pre-configured bipolar transistor eliminates external biasing components while delivering 250mW power dissipation. Applications span from smart home appliances to automotive lighting systems. Toshiba Semiconductor and Storage combines 20+ years of semiconductor expertise with cutting-edge silicon technology in this robust solution.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 80 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 4.7 kOhms
- Resistor - Emitter Base (R2): 4.7 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 30 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 150mV @ 500µA, 5mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 100 mW
- Mounting Type: Surface Mount
- Package / Case: SC-101, SOT-883
- Supplier Device Package: CST3
Related Products
Rohm Semiconductor
DTB713ZETL
onsemi
FJNS4212RTA
Panasonic Electronic Components
UNR9210G0L
NXP USA Inc.
PDTA115TS,126
Panasonic Electronic Components
DRA3144E0L
Panasonic Electronic Components
DRC2143Y0L
Infineon Technologies

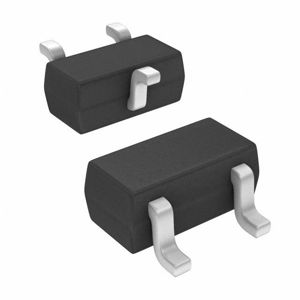

BCR 139T E6327
NXP USA Inc.
PDTC144TK,115
Diodes Incorporated

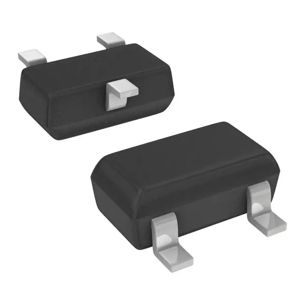

DDTA143EKA-7-F
