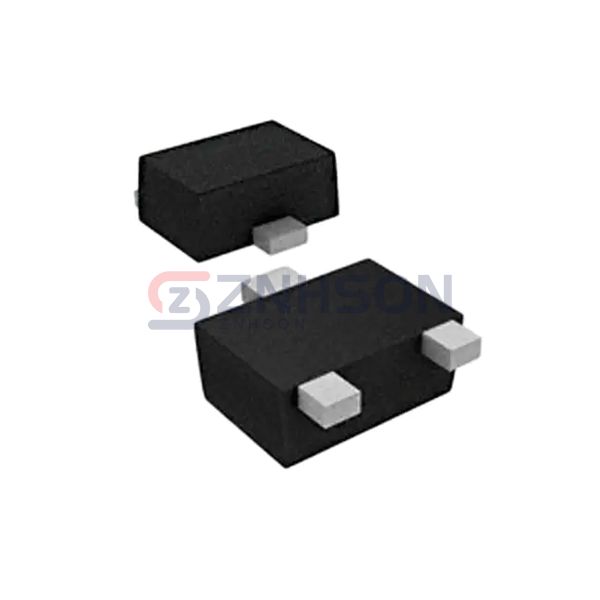

RN1109MFV,L3F
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
TRANS PREBIAS NPN 50V 0.1A VESM
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Toshiba Semiconductor and Storage's RN1109MFV,L3F redefines reliability in the Transistors - Bipolar (BJT) - Single, Pre-Biased category. With built-in bias resistors, this component accelerates prototyping while maintaining signal integrity. Key features include 1) 300mA collector current capacity 2) Wide operating temperature range (-55 C to +150 C) 3) RoHS compliance. Implement in motor control systems, sensor interfaces, or battery-powered devices for optimal results.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 47 kOhms
- Resistor - Emitter Base (R2): 22 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 70 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 500µA, 5mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 150 mW
- Mounting Type: Surface Mount
- Package / Case: SOT-723
- Supplier Device Package: VESM
