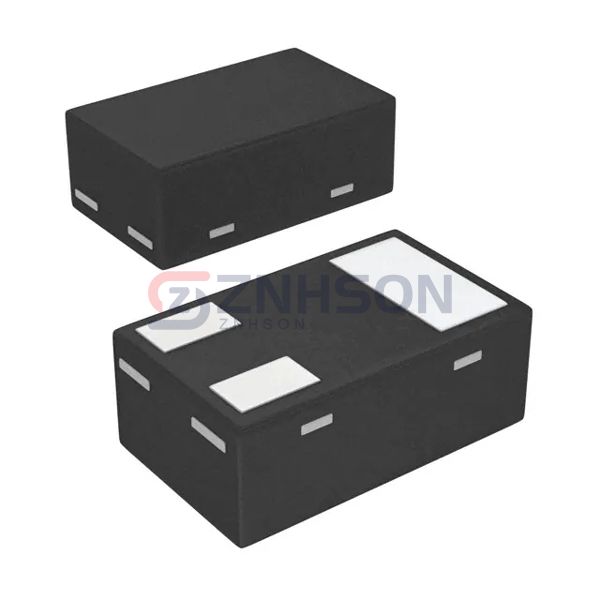

RN2109ACT(TPL3)
Toshiba Semiconductor and Storage

Toshiba Semiconductor and Storage
TRANS PREBIAS PNP 50V 0.08A CST3
$0.34
Available to order
Reference Price (USD)
1+
$0.34000
500+
$0.3366
1000+
$0.3332
1500+
$0.3298
2000+
$0.3264
2500+
$0.323
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Toshiba Semiconductor and Storage presents the RN2109ACT(TPL3) a game-changer in pre-biased transistor technology. The device's thermal shutdown protection and 5kV ESD rating make it perfect for harsh environments like oil/gas monitoring and agricultural machinery. Its 1.5V low saturation voltage enhances energy efficiency in portable electronics and wearables.
Specifications
- Product Status: Active
- Transistor Type: PNP - Pre-Biased
- Current - Collector (Ic) (Max): 80 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 47 kOhms
- Resistor - Emitter Base (R2): 22 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 70 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 150mV @ 250µA, 5mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 100 mW
- Mounting Type: Surface Mount
- Package / Case: SC-101, SOT-883
- Supplier Device Package: CST3
