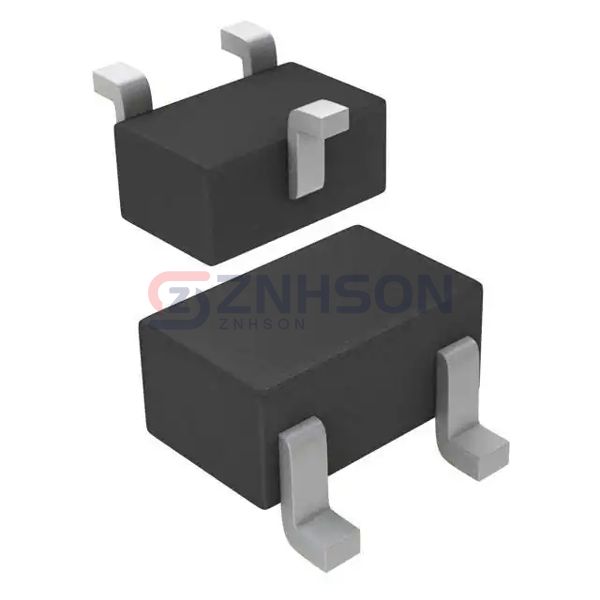

RN2301,LF
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
TRANS PREBIAS PNP 50V 0.1A USM
$0.18
Available to order
Reference Price (USD)
3,000+
$0.03213
6,000+
$0.02898
15,000+
$0.02520
30,000+
$0.02268
75,000+
$0.02016
150,000+
$0.01680
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Toshiba Semiconductor and Storage's RN2301,LF redefines reliability in the Transistors - Bipolar (BJT) - Single, Pre-Biased category. With built-in bias resistors, this component accelerates prototyping while maintaining signal integrity. Key features include 1) 300mA collector current capacity 2) Wide operating temperature range (-55 C to +150 C) 3) RoHS compliance. Implement in motor control systems, sensor interfaces, or battery-powered devices for optimal results.
Specifications
- Product Status: Active
- Transistor Type: PNP - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 4.7 kOhms
- Resistor - Emitter Base (R2): 4.7 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 30 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 250µA, 5mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 200 MHz
- Power - Max: 100 mW
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SC-70
Related Products
Rohm Semiconductor
DTB114EKT146
Nexperia USA Inc.
PDTA115ET,215
Toshiba Semiconductor and Storage
RN2103MFV,L3XHF(CT
Diodes Incorporated
ADTC144WCAQ-7
onsemi
SDTC124EET1G
Toshiba Semiconductor and Storage
RN2110MFV,L3F
Rohm Semiconductor
DTC113ZUAT106
Diodes Incorporated
ADTC143ECAQ-13
Rohm Semiconductor

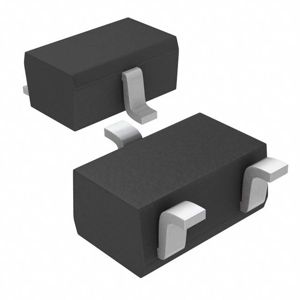

DTC114TUBTL
