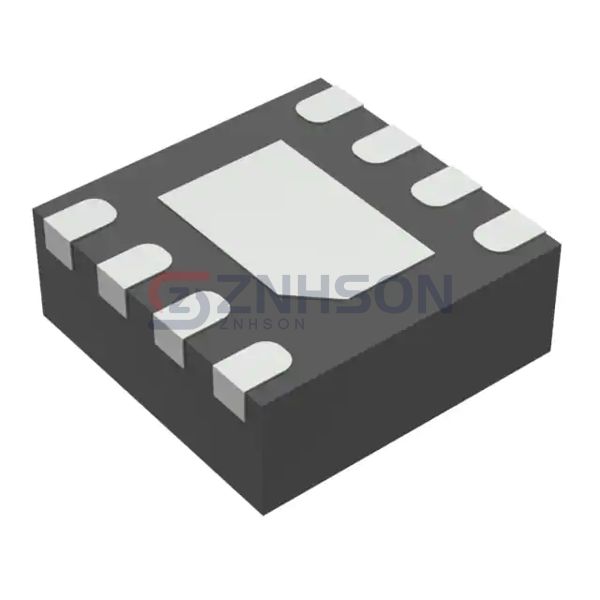

RT9011-JSGQW
Richtek USA Inc.
Richtek USA Inc.
IC REG LINEAR 2.5V/3.3V 8WDFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Richtek USA Inc.'s RT9011-JSGQW represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the RT9011-JSGQW are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 2
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 2.5V, 3.3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.33V @ 300mA, 0.33V @ 300mA
- Current - Output: 300mA, 300mA
- Current - Quiescent (Iq): 80 µA
- Current - Supply (Max): -
- PSRR: 70dB ~ 38dB (100Hz ~ 300kHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Short Circuit
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 8-WFDFN Exposed Pad
- Supplier Device Package: 8-WDFN (2x2)
