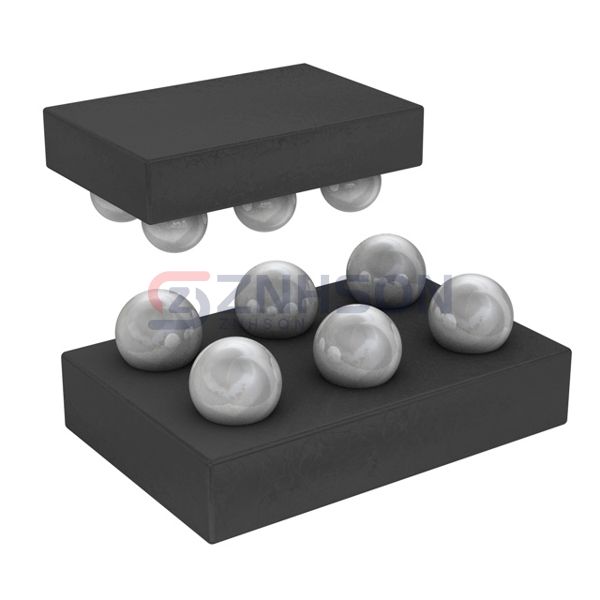

RT9055-JJWSC
Richtek USA Inc.
Richtek USA Inc.
IC REG LINEAR 2.5V/2.5V 6WLCSP
$0.87
Available to order
Reference Price (USD)
3,000+
$0.35700
6,000+
$0.33915
15,000+
$0.32640
30,000+
$0.31620
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the RT9055-JJWSC linear voltage regulator IC by Richtek USA Inc., a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this RT9055-JJWSC model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 2
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 2.5V, 2.5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.3V @ 300mA, 0.3V @ 300mA
- Current - Output: 300mA, 300mA
- Current - Quiescent (Iq): 58 µA
- Current - Supply (Max): -
- PSRR: 70dB ~ 38dB (100Hz ~ 300kHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Short Circuit
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 6-UFBGA, WLCSP
- Supplier Device Package: 6-WLCSP (1.2x0.80)
