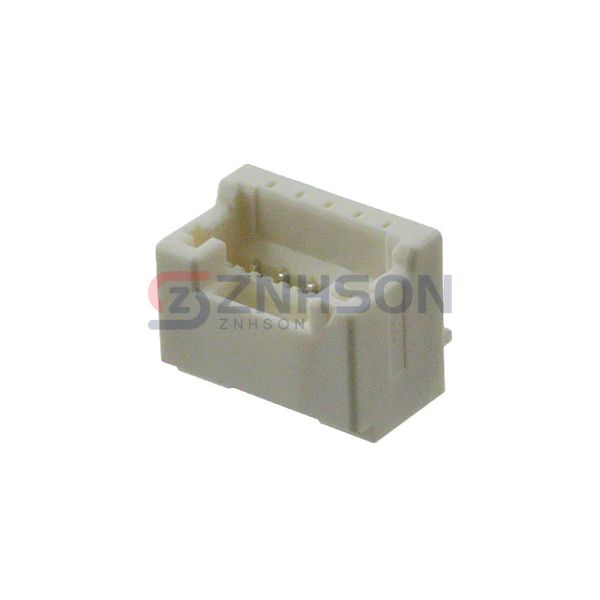

S05B-ZESK-2D(T)(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER R/A 5POS 1.5MM
$0.73
Available to order
Reference Price (USD)
1+
$0.71000
10+
$0.67000
100+
$0.51380
500+
$0.44680
1,056+
$0.36861
5,280+
$0.32393
10,560+
$0.30159
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the S05B-ZESK-2D(T)(LF)(SN) rectangular connector header by JST Sales America Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the S05B-ZESK-2D(T)(LF)(SN) ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust JST Sales America Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Outer Shroud Contact
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.248" (6.30mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: Board Guide
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A
- Voltage Rating: 100V
Related Products
Amphenol ICC (FCI)
77313-429R12LF
Molex
0436500929
Amphenol ICC (FCI)
95278-801-10LF
Samtec Inc.
TSM-116-02-L-SH-A
TE Connectivity AMP Connectors

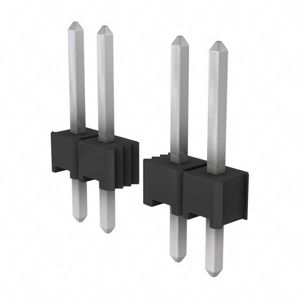

9-146274-0-05
Samtec Inc.

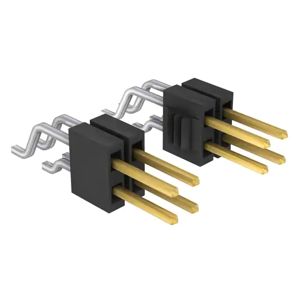

FTSH-109-04-F-DH
Samtec Inc.

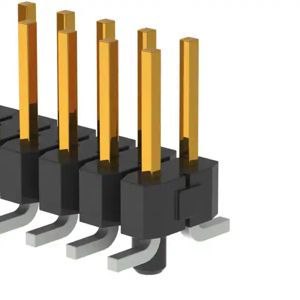

TSM-129-01-S-DV-A
Samtec Inc.

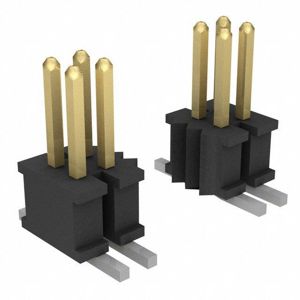

FTSH-143-01-F-DV
