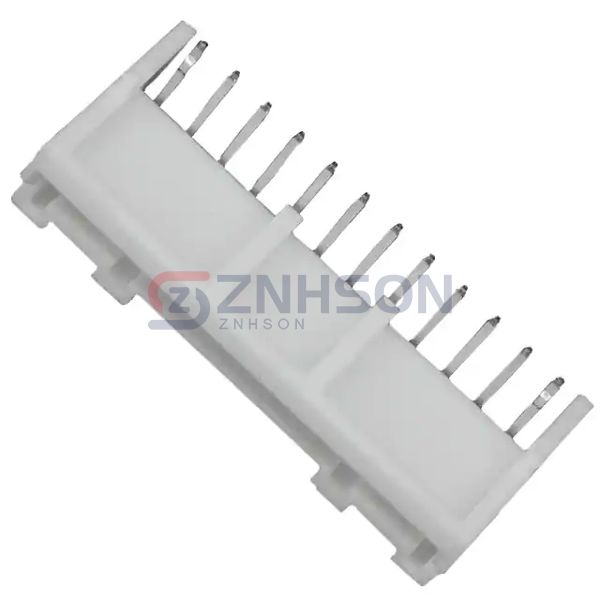

S12B-PASK-2(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER R/A 12POS 2MM
$0.77
Available to order
Reference Price (USD)
1+
$0.83000
10+
$0.77700
100+
$0.59580
500+
$0.51812
1,000+
$0.42744
5,000+
$0.37563
10,000+
$0.34973
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the S12B-PASK-2(LF)(SN) rectangular connector header from JST Sales America Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the S12B-PASK-2(LF)(SN) is perfect for automotive, industrial, and consumer electronics. JST Sales America Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.126" (3.20mm)
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.256" (6.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 250V
