S22B-PUDSS-1(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER R/A 22POS 2MM
$0.90
Available to order
Reference Price (USD)
1+
$0.87000
10+
$0.76800
100+
$0.66290
500+
$0.54236
1,000+
$0.48209
5,000+
$0.42183
10,000+
$0.40074
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

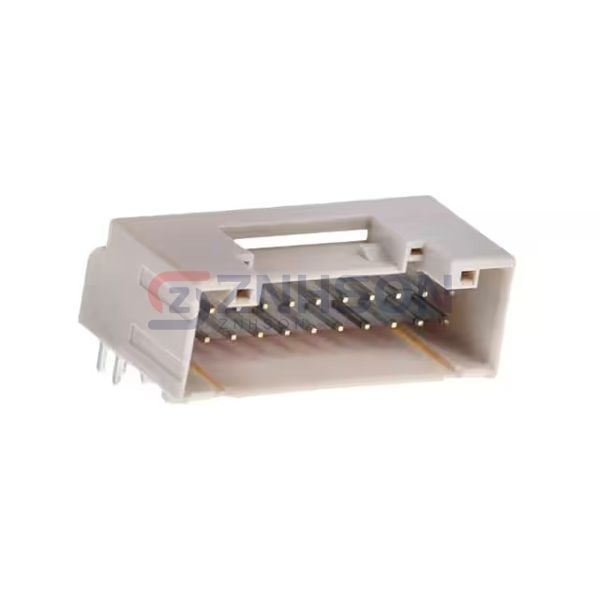

The S22B-PUDSS-1(LF)(SN) by JST Sales America Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the S22B-PUDSS-1(LF)(SN) supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. JST Sales America Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 22
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.335" (8.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: Board Guide
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 250V
Related Products
Molex
1053111202
TE Connectivity AMP Connectors
4-103186-0-12
Samtec Inc.
TEM-105-02-03.0-H-D-WT
Samtec Inc.
ZSS-136-02-T-D-640
Amphenol ICC (FCI)
54102-S3000LF
Preci-Dip
890-80-013-10-004101
Mill-Max Manufacturing Corp.
335-90-106-00-160000
Preci-Dip
832-10-040-30-001101
Preci-Dip

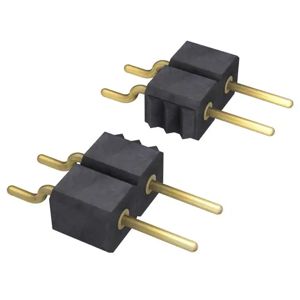

800-10-048-40-001101
