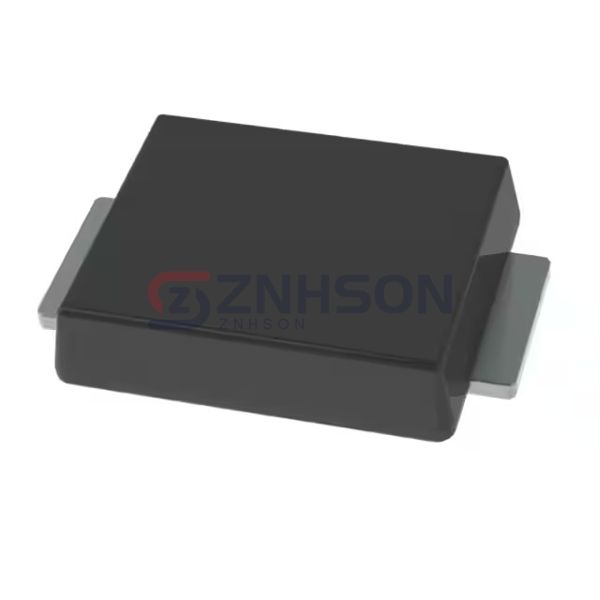

S2MGF_R1_00001
Panjit International Inc.
Panjit International Inc.
SURFACE MOUNT RECTIFIER
$0.45
Available to order
Reference Price (USD)
1+
$0.45000
500+
$0.4455
1000+
$0.441
1500+
$0.4365
2000+
$0.432
2500+
$0.4275
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The S2MGF_R1_00001 by Panjit International Inc. is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the S2MGF_R1_00001 ensures long-term reliability even in harsh operating conditions. Trust Panjit International Inc. for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1000 V
- Current - Average Rectified (Io): 2A
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 2 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 1 µA @ 1000 V
- Capacitance @ Vr, F: 18pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-221AA, SMB Flat Leads
- Supplier Device Package: SMBF
- Operating Temperature - Junction: -55°C ~ 150°C
Related Products
STMicroelectronics
BAT54FILMY
Vishay General Semiconductor - Diodes Division
VS-70HFLR40S05
onsemi
1N485B
Vishay General Semiconductor - Diodes Division
UH3BHE3_A/H
Taiwan Semiconductor Corporation
1N5399GH
SMC Diode Solutions
SDURD1030
Nexperia USA Inc.
PMEG2010BELD,315
Vishay General Semiconductor - Diodes Division
VS-2EYH01HM3/H
Microchip Technology

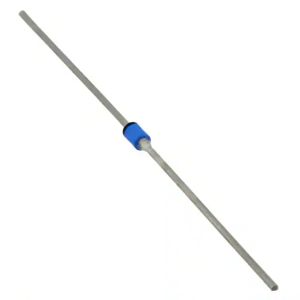

JAN1N6626/TR
