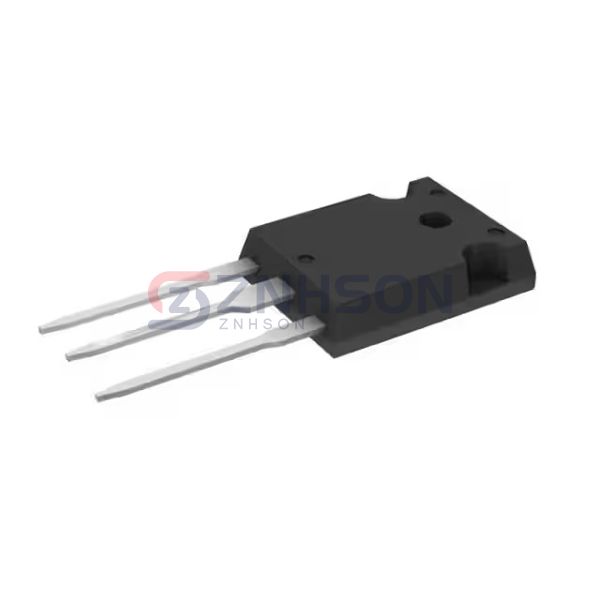

S4D30120D
SMC Diode Solutions
SMC Diode Solutions
DIODE SCHOTTKY SILICON CARBIDE S
$10.41
Available to order
Reference Price (USD)
1+
$10.41000
500+
$10.3059
1000+
$10.2018
1500+
$10.0977
2000+
$9.9936
2500+
$9.8895
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The S4D30120D from SMC Diode Solutions is a standout in the Discrete Semiconductor Products family, offering unmatched rectification efficiency in compact diode arrays. Designed for high-density PCB layouts, this product excels in bridge rectifiers and polarity protection circuits. Its low leakage current and high-temperature stability make it a favorite for telecommunications, consumer electronics, and medical devices. Choose SMC Diode Solutions's S4D30120D for applications where space-saving design meets industrial-grade reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Silicon Carbide Schottky
- Voltage - DC Reverse (Vr) (Max): 1200 V
- Current - Average Rectified (Io) (per Diode): 15A
- Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 15 A
- Speed: No Recovery Time > 500mA (Io)
- Reverse Recovery Time (trr): 0 ns
- Current - Reverse Leakage @ Vr: 200 µA @ 1200 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AD
