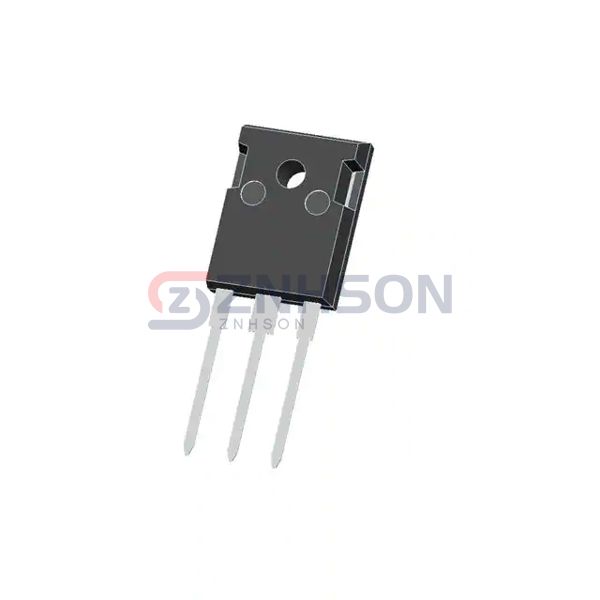

S4D40120D
SMC Diode Solutions
SMC Diode Solutions
DIODE SCHOTTKY SILICON CARBIDE S
$18.84
Available to order
Reference Price (USD)
1+
$18.84000
500+
$18.6516
1000+
$18.4632
1500+
$18.2748
2000+
$18.0864
2500+
$17.898
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The S4D40120D rectifier array from SMC Diode Solutions redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. SMC Diode Solutions's precision manufacturing ensures each S4D40120D meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Silicon Carbide Schottky
- Voltage - DC Reverse (Vr) (Max): 1200 V
- Current - Average Rectified (Io) (per Diode): 20A
- Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 20 A
- Speed: No Recovery Time > 500mA (Io)
- Reverse Recovery Time (trr): 0 ns
- Current - Reverse Leakage @ Vr: 40 µA @ 1200 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AD
