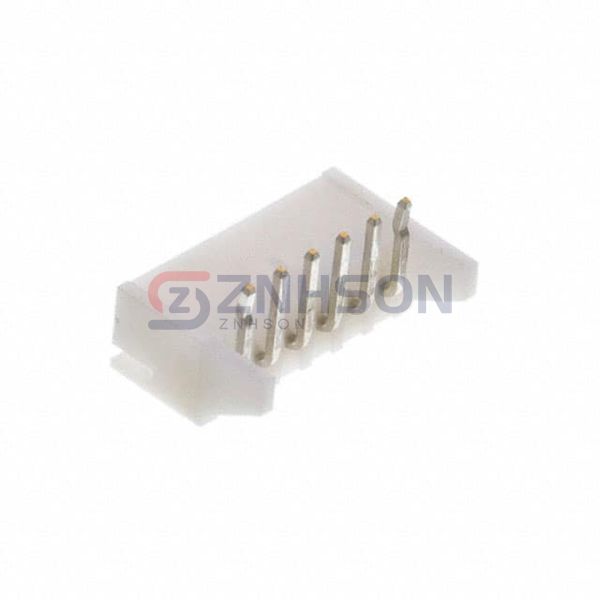

S6B-XH-A-1(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER R/A P6OS 2.5MM
$0.41
Available to order
Reference Price (USD)
1+
$0.41000
500+
$0.4059
1000+
$0.4018
1500+
$0.3977
2000+
$0.3936
2500+
$0.3895
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The S6B-XH-A-1(LF)(SN) by JST Sales America Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the S6B-XH-A-1(LF)(SN) supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. JST Sales America Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Press-Fit, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 250V
