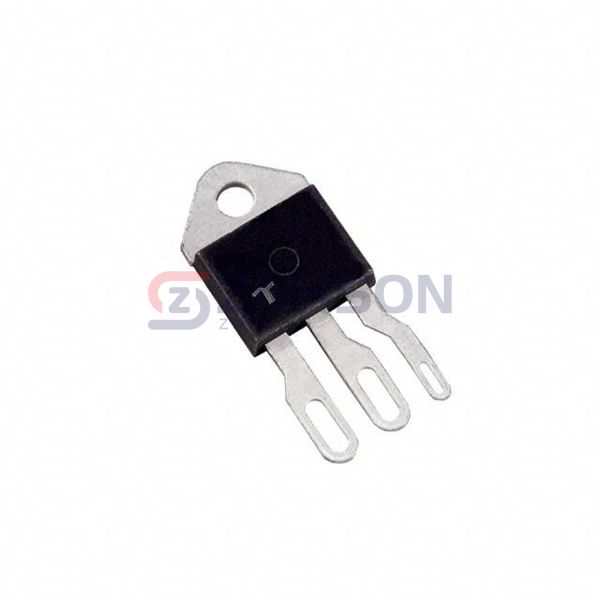

S8070WTP
Littelfuse Inc.
Littelfuse Inc.
SCR 800V 70A TO218X
$6.57
Available to order
Reference Price (USD)
1+
$7.24000
10+
$6.51600
25+
$5.93680
100+
$5.35760
250+
$4.92320
500+
$4.48880
1,000+
$3.90960
2,500+
$3.76480
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the S8070WTP Thyristor - SCR from Littelfuse Inc., a game-changer in the Discrete Semiconductor Products sector. Boasting ultra-fast switching and high surge current tolerance, this SCR is built for modern electronics. It's particularly effective in pulse generators, crowbar circuits, and power factor correction devices. Real-world implementations include medical imaging equipment and railway traction systems. Littelfuse Inc.'s innovative design makes the S8070WTP a trusted component worldwide.
Specifications
- Product Status: Active
- Voltage - Off State: 800 V
- Voltage - Gate Trigger (Vgt) (Max): 2 V
- Current - Gate Trigger (Igt) (Max): 50 mA
- Voltage - On State (Vtm) (Max): 1.8 V
- Current - On State (It (AV)) (Max): 45 A
- Current - On State (It (RMS)) (Max): 70 A
- Current - Hold (Ih) (Max): 80 mA
- Current - Off State (Max): 20 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 800A, 950A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: TO-218X-3
- Supplier Device Package: TO-218X Non-Isolated Mounting Tab
