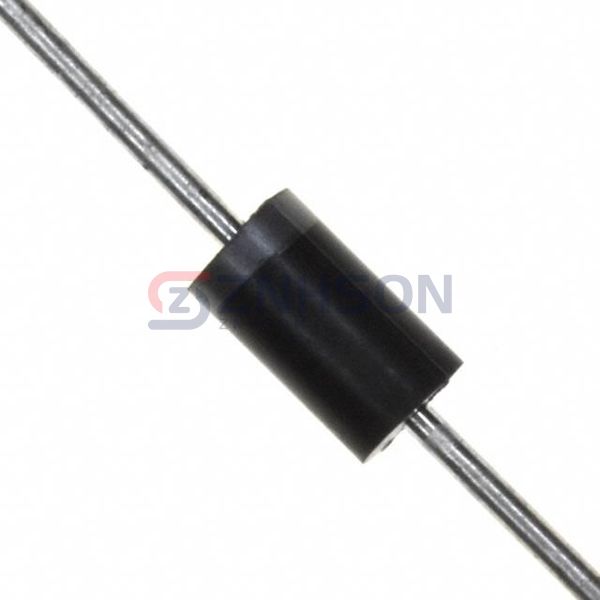

SB520-E3/54
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE SCHOTTKY 20V 5A DO201AD
$0.66
Available to order
Reference Price (USD)
1+
$0.66000
500+
$0.6534
1000+
$0.6468
1500+
$0.6402
2000+
$0.6336
2500+
$0.627
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the SB520-E3/54 single rectifier diode from Vishay General Semiconductor - Diodes Division. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The SB520-E3/54 is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. Vishay General Semiconductor - Diodes Division's commitment to innovation ensures that the SB520-E3/54 meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 5A
- Voltage - Forward (Vf) (Max) @ If: 480 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 20 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: DO-201AD, Axial
- Supplier Device Package: DO-201AD
- Operating Temperature - Junction: -65°C ~ 150°C
