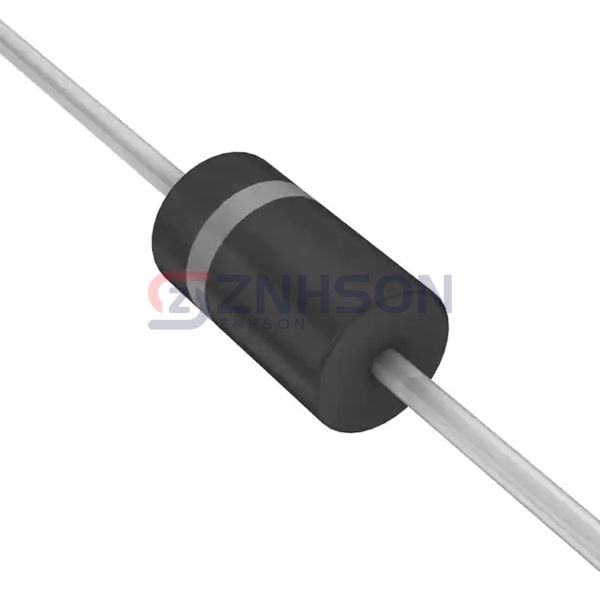

SB540
onsemi
onsemi
DIODE SCHOTTKY 40V 5A DO201AD
$0.68
Available to order
Reference Price (USD)
1,250+
$0.21409
2,500+
$0.19614
6,250+
$0.18419
12,500+
$0.17820
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the SB540 single rectifier diode by onsemi, a key component in the Diodes - Rectifiers - Single classification. This diode excels in providing stable and efficient rectification for circuits requiring precise voltage control. With its high surge current capability and low leakage, it is perfect for use in power management systems, LED drivers, and battery chargers. The SB540 is widely utilized in telecommunications, renewable energy systems, and medical devices, ensuring reliable operation under varying load conditions. Choose onsemi's SB540 for unmatched quality and performance in discrete semiconductor solutions.
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 40 V
- Current - Average Rectified (Io): 5A
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 40 V
- Capacitance @ Vr, F: 500pF @ 4V, 1MHz
- Mounting Type: Through Hole
- Package / Case: DO-201AD, Axial
- Supplier Device Package: DO-201AD
- Operating Temperature - Junction: -55°C ~ 150°C
