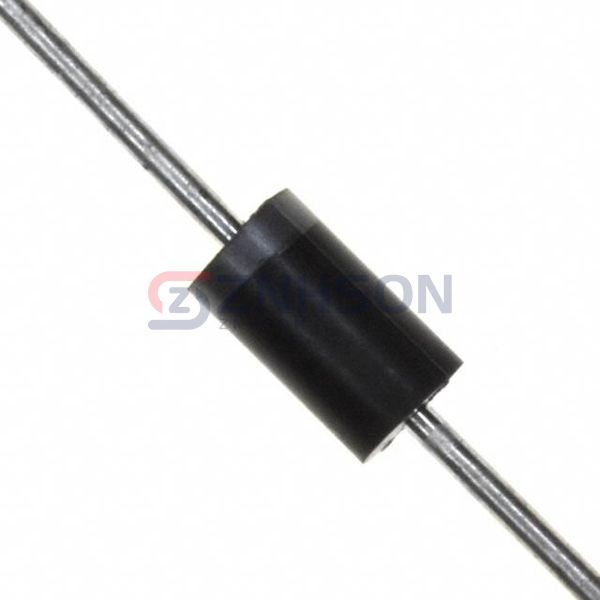

SB560/4
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE SCHOTTKY 60V 5A DO201AD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SB560/4 from Vishay General Semiconductor - Diodes Division is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Vishay General Semiconductor - Diodes Division's SB560/4 for superior performance and durability in demanding environments.
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io): 5A
- Voltage - Forward (Vf) (Max) @ If: 650 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 60 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: DO-201AD, Axial
- Supplier Device Package: DO-201AD
- Operating Temperature - Junction: -65°C ~ 150°C
