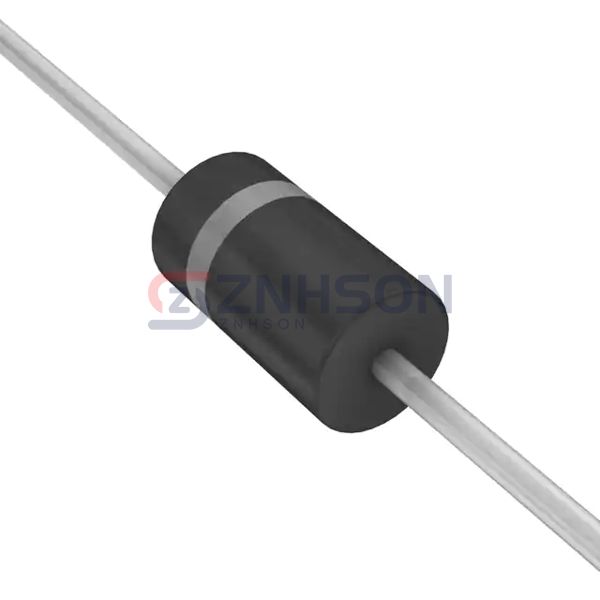

SB580
onsemi
onsemi
DIODE SCHOTTKY 80V 5A DO201AD
$0.00
Available to order
Reference Price (USD)
1,250+
$0.27818
2,500+
$0.25349
6,250+
$0.24525
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the SB580 single rectifier diode from onsemi. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The SB580 is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. onsemi's commitment to innovation ensures that the SB580 meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 80 V
- Current - Average Rectified (Io): 5A
- Voltage - Forward (Vf) (Max) @ If: 850 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 80 V
- Capacitance @ Vr, F: 380pF @ 4V, 1MHz
- Mounting Type: Through Hole
- Package / Case: DO-201AD, Axial
- Supplier Device Package: DO-201AD
- Operating Temperature - Junction: -55°C ~ 150°C
