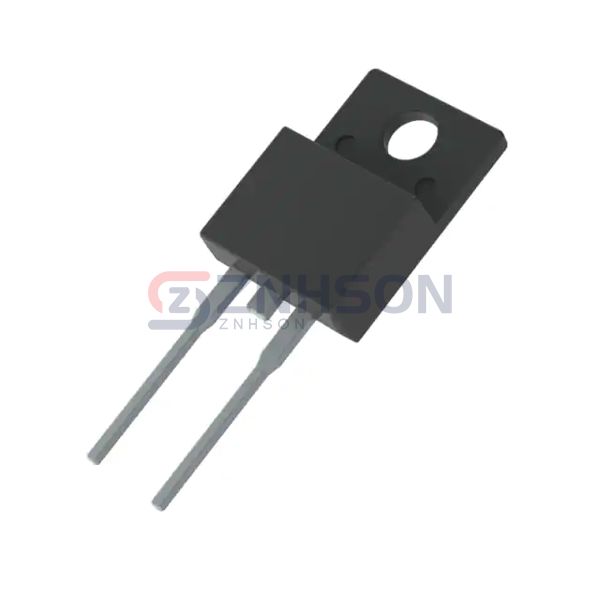

SB820F_T0_00001
Panjit International Inc.
Panjit International Inc.
SURFACE MOUNT SCHOTTKY BARRIER R
$0.67
Available to order
Reference Price (USD)
1+
$0.67000
500+
$0.6633
1000+
$0.6566
1500+
$0.6499
2000+
$0.6432
2500+
$0.6365
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SB820F_T0_00001 by Panjit International Inc. is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the SB820F_T0_00001 ensures long-term reliability even in harsh operating conditions. Trust Panjit International Inc. for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 8A
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 8 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 200 µA @ 20 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: TO-220-2 Full Pack, Isolated Tab
- Supplier Device Package: ITO-220AC
- Operating Temperature - Junction: -55°C ~ 125°C
