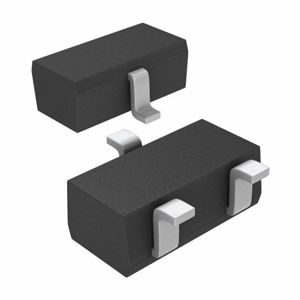

SBAT54AWT1G
onsemi
onsemi
DIODE ARRAY SCHOTTKY 30V SOT323
$0.43
Available to order
Reference Price (USD)
3,000+
$0.08820
6,000+
$0.07976
15,000+
$0.07132
30,000+
$0.06710
75,000+
$0.06288
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SBAT54AWT1G from onsemi is a standout in the Discrete Semiconductor Products family, offering unmatched rectification efficiency in compact diode arrays. Designed for high-density PCB layouts, this product excels in bridge rectifiers and polarity protection circuits. Its low leakage current and high-temperature stability make it a favorite for telecommunications, consumer electronics, and medical devices. Choose onsemi's SBAT54AWT1G for applications where space-saving design meets industrial-grade reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Operating Temperature - Junction: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SC-70-3 (SOT323)
