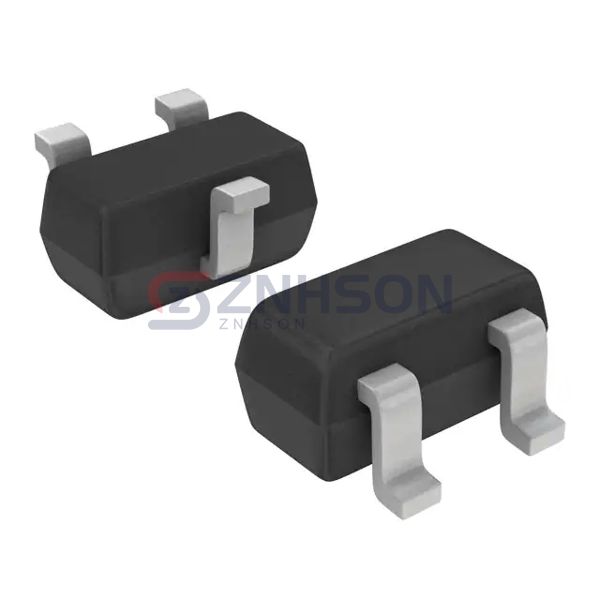

SBAT54CTT1G
onsemi
onsemi
DIODE ARRAY SCHOTTKY 30V SC75
$0.12
Available to order
Reference Price (USD)
3,000+
$0.10890
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the SBAT54CTT1G - onsemi's advanced solution in the Diodes - Rectifiers - Arrays segment. This high-speed rectifier array boasts ultra-low recovery time, significantly reducing power loss in switching applications. From server power supplies to LED lighting drivers and electric vehicle charging stations, this component ensures energy-efficient operation. onsemi combines innovative silicon technology with rigorous testing to deliver diode arrays that outperform in reliability and thermal management.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Operating Temperature - Junction: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: SC-75, SOT-416
- Supplier Device Package: SC-75, SOT-416
