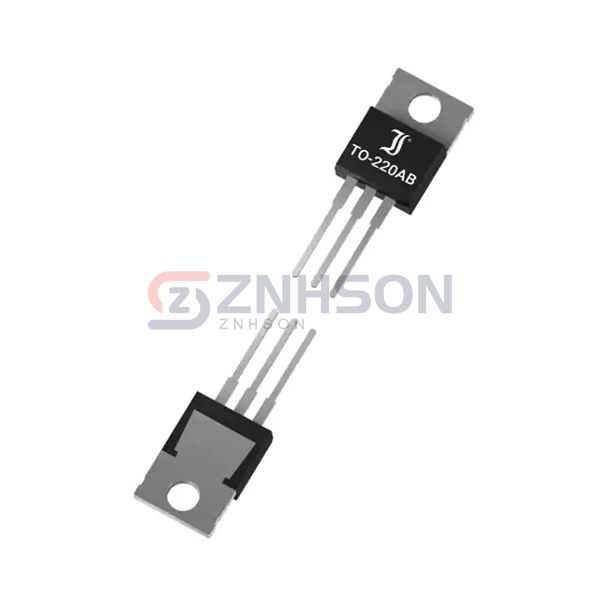

SBCT1020
Diotec Semiconductor
Diotec Semiconductor
SCHOTTKY TO-220AB 20V 10A
$0.64
Available to order
Reference Price (USD)
1+
$0.63700
500+
$0.63063
1000+
$0.62426
1500+
$0.61789
2000+
$0.61152
2500+
$0.60515
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the SBCT1020 by Diotec Semiconductor represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Diotec Semiconductor's patented junction design, the SBCT1020 achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io) (per Diode): 5A
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 300 µA @ 20 V
- Operating Temperature - Junction: -50°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB
