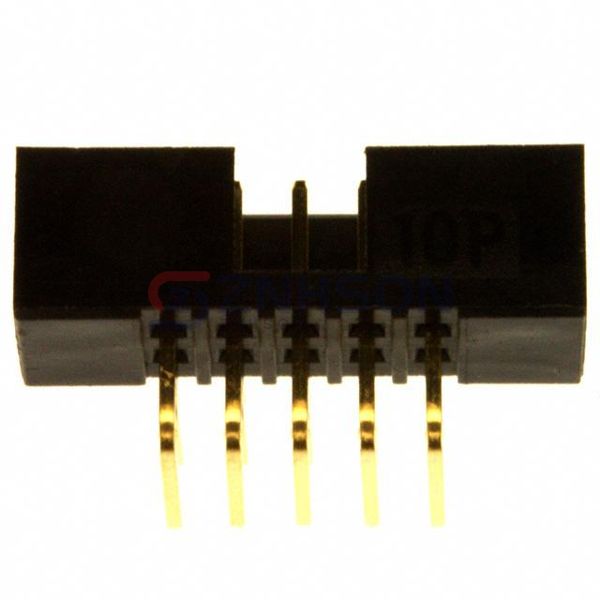

SBH21-NBPN-D05-RA-BK
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 10POS 2MM
$1.17
Available to order
Reference Price (USD)
1+
$1.17000
10+
$1.02800
100+
$0.88700
500+
$0.72576
1,000+
$0.64512
5,000+
$0.58240
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SBH21-NBPN-D05-RA-BK by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the SBH21-NBPN-D05-RA-BK supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.213" (5.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: -
