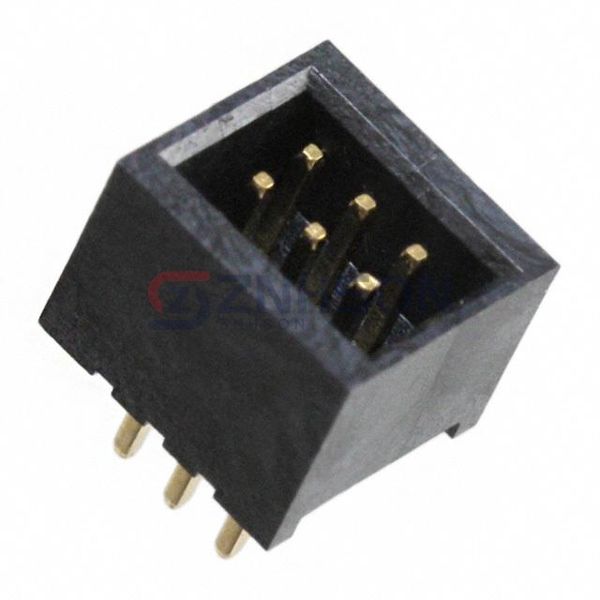

SBH51-LPSE-D03-ST-BK
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 6POS 1MM
$1.32
Available to order
Reference Price (USD)
1+
$1.32000
10+
$1.19700
135+
$1.02630
540+
$0.85522
1,080+
$0.73305
5,130+
$0.70590
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SBH51-LPSE-D03-ST-BK by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.098" (2.50mm)
- Overall Contact Length: -
- Insulation Height: 0.134" (3.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: -
Related Products
Hirose Electric Co Ltd
GT25-12DP-2.2H
Samtec Inc.
TSW-115-14-G-D
Samtec Inc.
FTSH-124-01-F-DV
Samtec Inc.
TSW-139-14-S-S
Preci-Dip
800-10-021-30-480101
Sullins Connector Solutions
PEC24DBCN

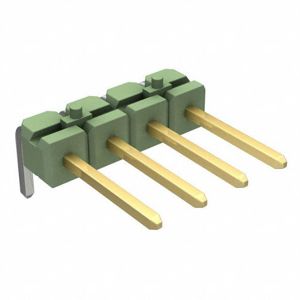

TE Connectivity AMP Connectors
825437-4

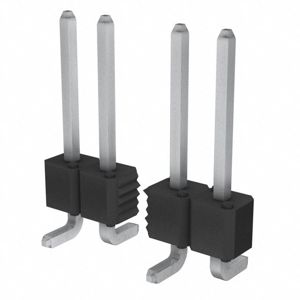

Amphenol ICC (FCI)
95293-402-36LF

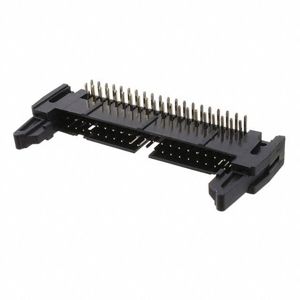

Adam Tech
