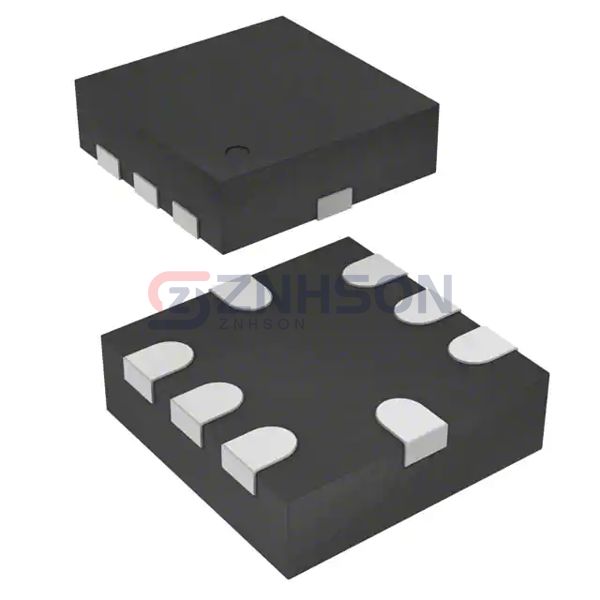

SC560AULTRT

Semtech Corporation

Manufacturer

Semtech Corporation

Description:

IC REG LINEAR POS ADJ 8MLPQ-UT

Datasheet:

SC560AULTRT Datasheet

$0.48

Available to order

Reference Price (USD)

3,000+

$0.36400

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The SC560AULTRT from Semtech Corporation is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Adjustable
Number of Regulators: 2
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 1.2V
Voltage - Output (Max): 5V
Voltage Dropout (Max): 0.1V @ 200mA (Typ), 0.1V @ 200mA (Typ)
Current - Output: 300mA, 300mA
Current - Quiescent (Iq): 100 µA
Current - Supply (Max): -
PSRR: 65dB ~ 40dB (1kHz)
Control Features: Enable
Protection Features: Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Package / Case: 8-UFQFN
Supplier Device Package: 8-MLPQ-UT (1.5x1.5)
