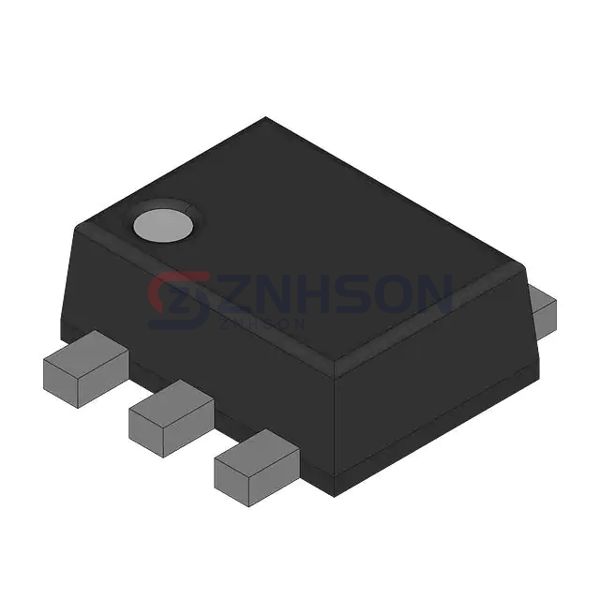

SCH1337-TL-H
Sanyo
Sanyo
P-CHANNEL MOSFET
$0.11
Available to order
Reference Price (USD)
1+
$0.11000
500+
$0.1089
1000+
$0.1078
1500+
$0.1067
2000+
$0.1056
2500+
$0.1045
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SCH1337-TL-H by Sanyo is a standout in the Transistors - FETs, MOSFETs - Single segment, offering exceptional power handling and efficiency. Designed for precision and reliability, this MOSFET is widely used in audio amplifiers, DC-DC converters, and battery management systems. With advanced features like avalanche energy resistance and low leakage current, it's a top pick for professionals in the Discrete Semiconductor Products field. Choose Sanyo for innovation you can depend on.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4V, 10V
- Rds On (Max) @ Id, Vgs: 150mOhm @ 1A, 10V
- Vgs(th) (Max) @ Id: -
- Gate Charge (Qg) (Max) @ Vgs: 3.9 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 172 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 800mW (Ta)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-SCH
- Package / Case: SOT-563, SOT-666
