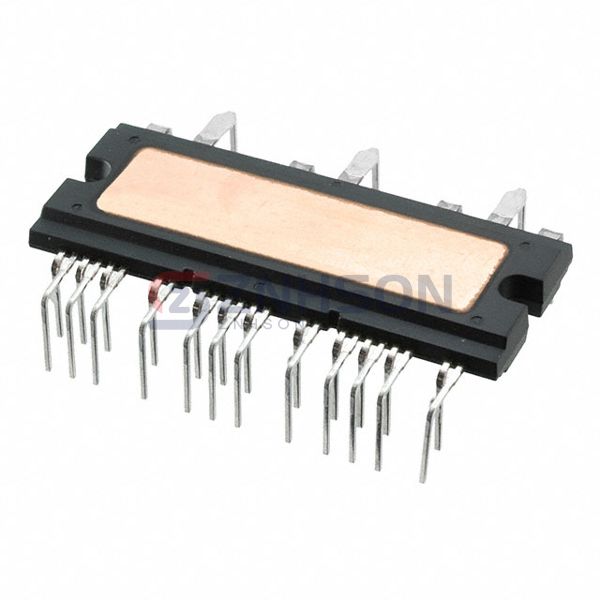

SCM1246MF
Sanken
Sanken
IC BRIDGE DRIVER PAR SCM33
$16.11
Available to order
Reference Price (USD)
250+
$14.77152
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the SCM1246MF Sanken PMIC - Full, Half-Bridge Driver, a versatile IC built for high-performance power management. Perfect for use in LED lighting, battery management systems, and telecom infrastructure, this driver IC ensures efficient power delivery and minimal energy loss. The SCM1246MF features adaptive dead-time control and integrated diagnostics, providing enhanced safety and operational efficiency. Trust Sanken to supply the advanced technology you need for cutting-edge applications.
Specifications
- Product Status: Not For New Designs
- Output Configuration: Half Bridge (3)
- Applications: AC Motors
- Interface: Logic
- Load Type: Inductive
- Technology: IGBT
- Rds On (Typ): -
- Current - Output / Channel: 30A
- Current - Peak Output: 45A
- Voltage - Supply: 13.5V ~ 16.5V
- Voltage - Load: 400V (Max)
- Operating Temperature: 125°C (TJ)
- Features: Auto Restart, Bootstrap Circuit
- Fault Protection: Current Limiting, Over Temperature, UVLO
- Mounting Type: Through Hole
- Package / Case: 33-PowerDIP (1.307", 33.20mm) Exposed Pad
- Supplier Device Package: 33-PowerDIP LF2552
Related Products
onsemi
LB1863M-MPB-E
Vishay Siliconix
SIC639CD-T1-GE3
Texas Instruments
CSD95373BQ5MT
Texas Instruments

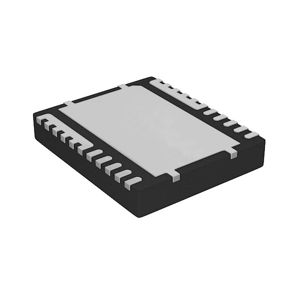

CSD95491Q5MCT
Allegro MicroSystems

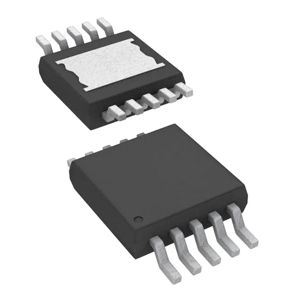

A3909GLYTR-T
Sanken

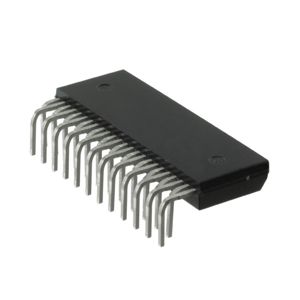

SLA6868MZ
Sanken

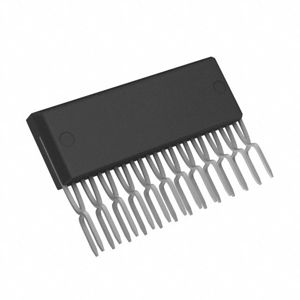

SMA6862MZ LF2452
Monolithic Power Systems Inc.

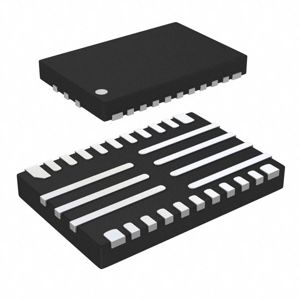

MP86885GQWT-Z
Renesas Electronics America Inc

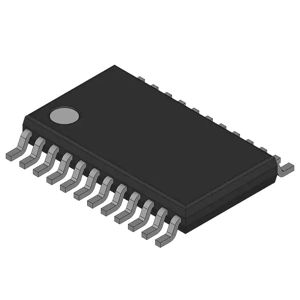

UPD168111AMA-6A5-E2-A
