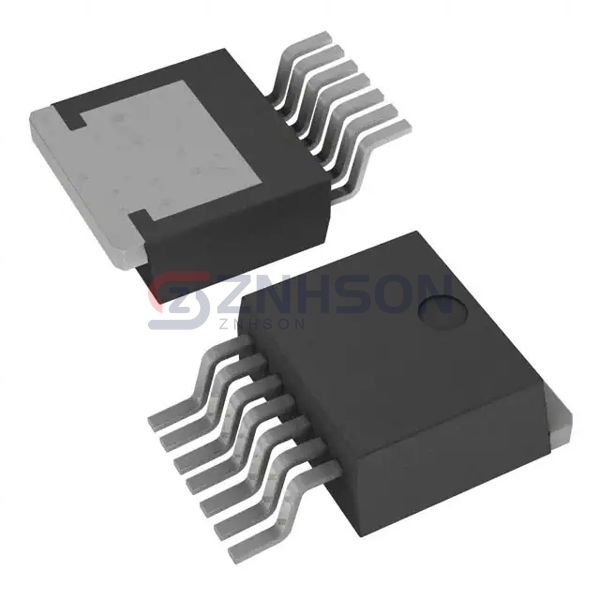

SCTH40N120G2V7AG
STMicroelectronics
STMicroelectronics
SICFET N-CH 650V 33A H2PAK-7
$22.35
Available to order
Reference Price (USD)
1+
$22.35000
500+
$22.1265
1000+
$21.903
1500+
$21.6795
2000+
$21.456
2500+
$21.2325
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SCTH40N120G2V7AG from STMicroelectronics redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the SCTH40N120G2V7AG offers the precision and reliability you need. Trust STMicroelectronics to power your next breakthrough innovation.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 650 V
- Current - Continuous Drain (Id) @ 25°C: 33A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 18V
- Rds On (Max) @ Id, Vgs: 105mOhm @ 20A, 18V
- Vgs(th) (Max) @ Id: 5V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 63 nC @ 18 V
- Vgs (Max): +22V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: 1230 pF @ 800 V
- FET Feature: -
- Power Dissipation (Max): 250W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: H2PAK-7
- Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
