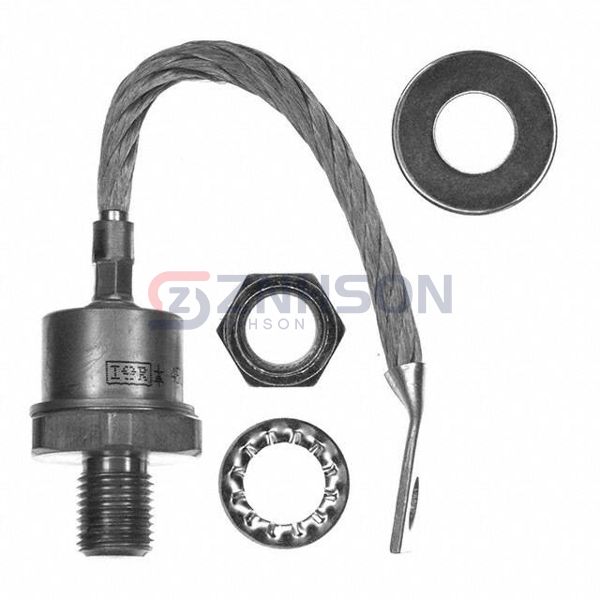

SD103N10S10PV
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE GEN PURP 1KV 110A DO205
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the SD103N10S10PV single rectifier diode from Vishay General Semiconductor - Diodes Division. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The SD103N10S10PV is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. Vishay General Semiconductor - Diodes Division's commitment to innovation ensures that the SD103N10S10PV meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1000 V
- Current - Average Rectified (Io): 110A
- Voltage - Forward (Vf) (Max) @ If: 2.23 V @ 345 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 1 µs
- Current - Reverse Leakage @ Vr: 35 mA @ 1000 V
- Capacitance @ Vr, F: -
- Mounting Type: Stud Mount
- Package / Case: DO-205AC, DO-30, Stud
- Supplier Device Package: DO-205AC (DO-30)
- Operating Temperature - Junction: -40°C ~ 125°C
