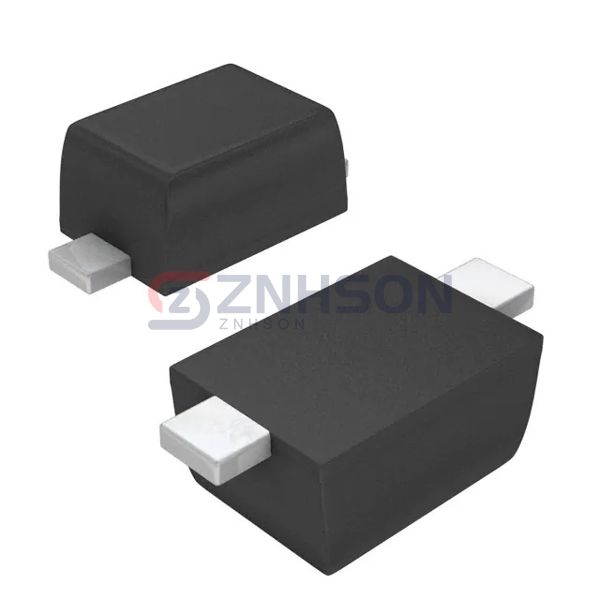

SDM20U30Q-7
Diodes Incorporated
Diodes Incorporated
SCHOTTKY DIODE SOD523
$0.23
Available to order
Reference Price (USD)
1+
$0.23000
500+
$0.2277
1000+
$0.2254
1500+
$0.2231
2000+
$0.2208
2500+
$0.2185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SDM20U30Q-7 from Diodes Incorporated is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Diodes Incorporated's SDM20U30Q-7 for superior performance and durability in demanding environments.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 200mA
- Voltage - Forward (Vf) (Max) @ If: 500 mV @ 200 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 150 µA @ 30 V
- Capacitance @ Vr, F: 20pF @ 0V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
- Operating Temperature - Junction: -65°C ~ 125°C
Related Products
Wolfspeed, Inc.
C3D06060F
Panjit International Inc.
BAV20WS_R1_00001
NTE Electronics, Inc
NTE548
Vishay General Semiconductor - Diodes Division

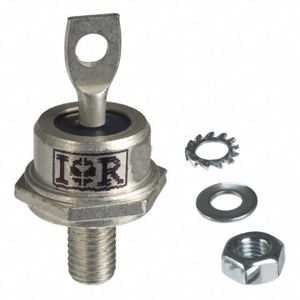

VS-70HFR140
Comchip Technology

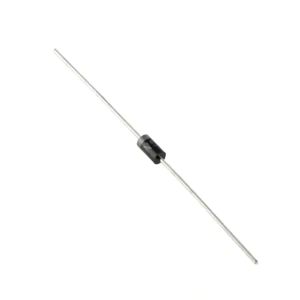

SR360-HF
Vishay General Semiconductor - Diodes Division
SBYV26C-E3/54
Vishay General Semiconductor - Diodes Division
VS-8EWS12STRL-M3
SMC Diode Solutions
SDURD520
Microchip Technology

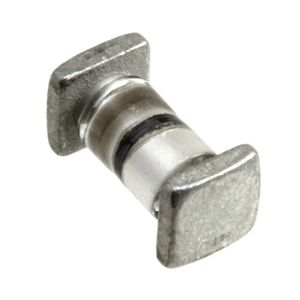

1N5618US/TR
