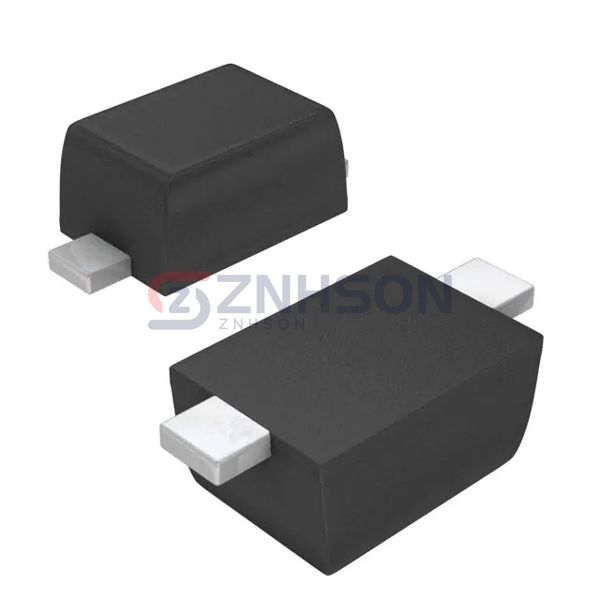

SDM20U40Q-7
Diodes Incorporated
Diodes Incorporated
SCHOTTKY DIODE SOD523
$0.29
Available to order
Reference Price (USD)
1+
$0.29000
500+
$0.2871
1000+
$0.2842
1500+
$0.2813
2000+
$0.2784
2500+
$0.2755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the SDM20U40Q-7 single rectifier diode by Diodes Incorporated, a key component in the Diodes - Rectifiers - Single classification. This diode excels in providing stable and efficient rectification for circuits requiring precise voltage control. With its high surge current capability and low leakage, it is perfect for use in power management systems, LED drivers, and battery chargers. The SDM20U40Q-7 is widely utilized in telecommunications, renewable energy systems, and medical devices, ensuring reliable operation under varying load conditions. Choose Diodes Incorporated's SDM20U40Q-7 for unmatched quality and performance in discrete semiconductor solutions.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 40 V
- Current - Average Rectified (Io): 250mA
- Voltage - Forward (Vf) (Max) @ If: 600 mV @ 200 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 10 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 30 V
- Capacitance @ Vr, F: 50pF @ 0V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
- Operating Temperature - Junction: -65°C ~ 125°C
