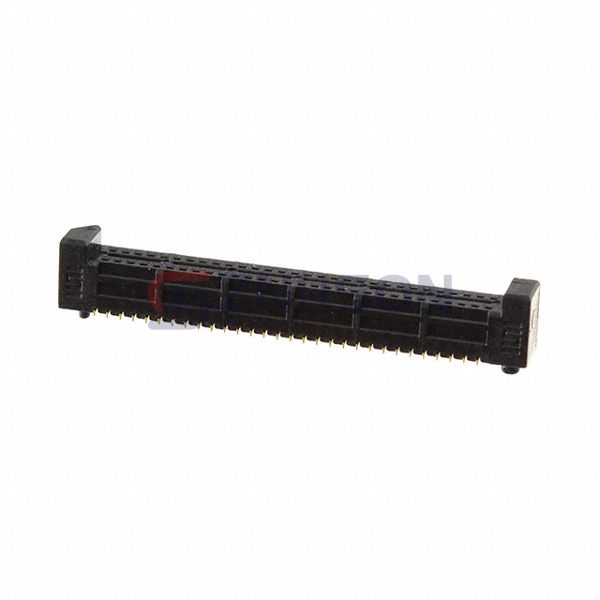

SEM-130-02-03.0-H-D-A
Samtec Inc.
Samtec Inc.
CONN RCPT 60POS 0.031 GOLD SMD
$23.62
Available to order
Reference Price (USD)
1+
$12.00000
10+
$11.60000
25+
$11.20000
50+
$10.80000
100+
$10.40000
250+
$10.20000
500+
$10.00000
1,000+
$9.60000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SEM-130-02-03.0-H-D-A Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, Samtec Inc. provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 60
- Number of Positions Loaded: All
- Pitch - Mating: 0.031" (0.80mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.125" (3.18mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Insulation Color: Black
- Insulation Height: 0.177" (4.50mm)
- Contact Length - Post: -
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: -
- Contact Finish - Post: Gold
- Mated Stacking Heights: 6mm, 7mm, 10mm
- Ingress Protection: -
- Features: Board Guide
- Current Rating (Amps): 2.6A per Contact
- Voltage Rating: -
