SEM-150-02-03.0-G-D-A
Samtec Inc.
Samtec Inc.

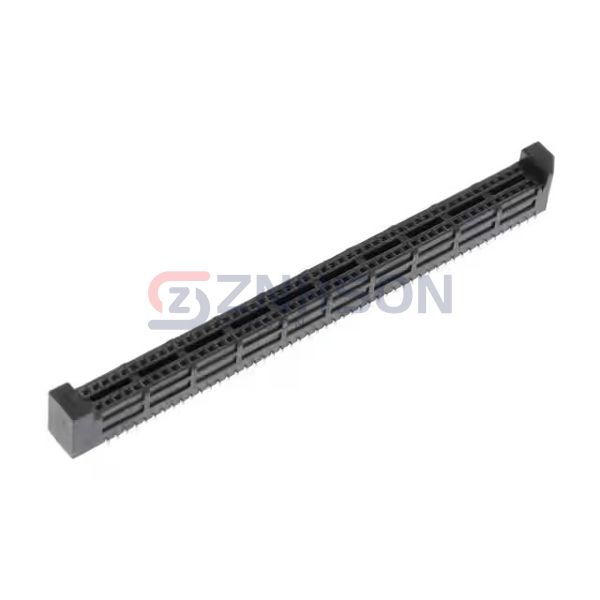

.8MM TIGER EYE MICRO SOCKET
$26.73
Available to order
Reference Price (USD)
1+
$13.58000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your project's performance with SEM-150-02-03.0-G-D-A Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors are built to withstand harsh conditions while maintaining excellent electrical properties. Key features include high mating cycles, EMI shielding, and ergonomic designs. Widely used in renewable energy systems, robotics, and audio/video equipment, Samtec Inc. connectors ensure seamless integration. Applications range from solar inverters to industrial robots and professional AV setups.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 100
- Number of Positions Loaded: All
- Pitch - Mating: 0.031" (0.80mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.125" (3.18mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Insulation Color: Black
- Insulation Height: 0.177" (4.50mm)
- Contact Length - Post: -
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: -
- Contact Finish - Post: Gold
- Mated Stacking Heights: 6mm, 7mm, 10mm
- Ingress Protection: -
- Features: Board Guide
- Current Rating (Amps): 2.6A per Contact
- Voltage Rating: -
