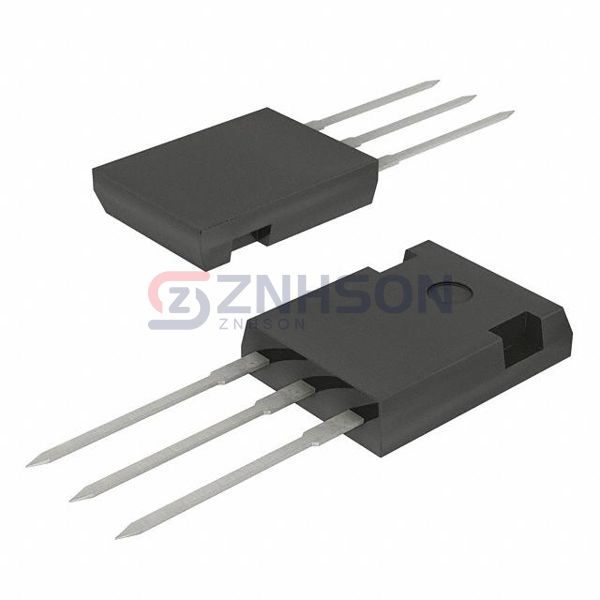

SF2005PTH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE GEN PURP 300V 20A TO247AD
$1.53
Available to order
Reference Price (USD)
1+
$1.52614
500+
$1.5108786
1000+
$1.4956172
1500+
$1.4803558
2000+
$1.4650944
2500+
$1.449833
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with the SF2005PTH single rectifier diode from Taiwan Semiconductor Corporation. This Discrete Semiconductor Product is engineered for precision and efficiency, offering low forward voltage and high surge tolerance. Ideal for rectification in power adapters, welding equipment, and UPS systems, the SF2005PTH delivers consistent results under heavy loads. Its applications extend to aerospace and defense systems, where reliability cannot be compromised. Taiwan Semiconductor Corporation's SF2005PTH is the go-to choice for engineers seeking robust and high-performing rectifier diodes.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 300 V
- Current - Average Rectified (Io): 20A
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 20 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 35 ns
- Current - Reverse Leakage @ Vr: 10 µA @ 300 V
- Capacitance @ Vr, F: 175pF @ 4V, 1MHz
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AD (TO-3P)
- Operating Temperature - Junction: -55°C ~ 150°C
