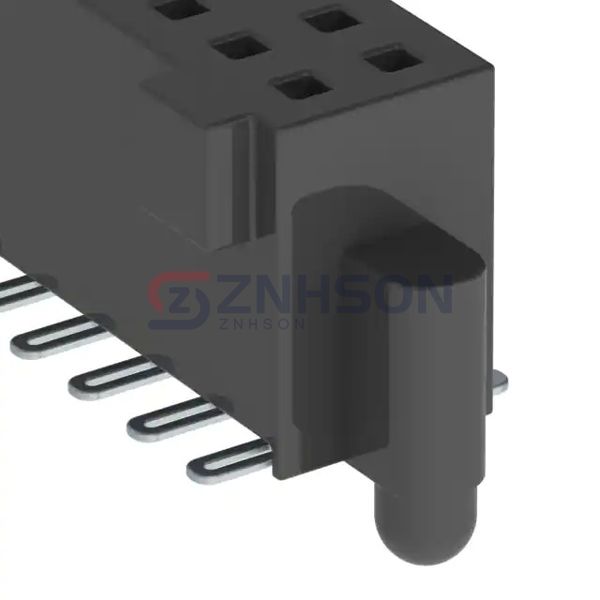

SFM-110-02-SM-D-A-P-TR

Samtec Inc.

Manufacturer

Samtec Inc.

Description:

CONN RCPT 20POS 0.05 GOLD SMD

Datasheet:

SFM-110-02-SM-D-A-P-TR Datasheet

$5.11

Available to order

Reference Price (USD)

125+

$4.24000

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The SFM-110-02-SM-D-A-P-TR Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets are designed for precision and reliability in critical applications. Featuring gold-plated contacts, polarized housings, and waterproof options, these connectors excel in marine, oil & gas, and transportation industries. Their robust design prevents misalignment and ensures long-term performance. Examples include underwater sensors, railway signaling systems, and offshore drilling equipment. Choose Samtec Inc. for connectors that meet the highest industry standards.

Specifications

Product Status: Active
Connector Type: Receptacle
Contact Type: Female Socket
Style: Board to Board or Cable
Number of Positions: 20
Number of Positions Loaded: All
Pitch - Mating: 0.050" (1.27mm)
Number of Rows: 2
Row Spacing - Mating: 0.050" (1.27mm)
Mounting Type: Surface Mount
Termination: Solder
Fastening Type: Push-Pull
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Insulation Color: Black
Insulation Height: 0.185" (4.70mm)
Contact Length - Post: -
Operating Temperature: -55°C ~ 125°C
Material Flammability Rating: UL94 V-0
Contact Finish - Post: Tin
Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Ingress Protection: -
Features: Board Guide, Pick and Place
Current Rating (Amps): 3.2A per Contact
Voltage Rating: 250VAC
