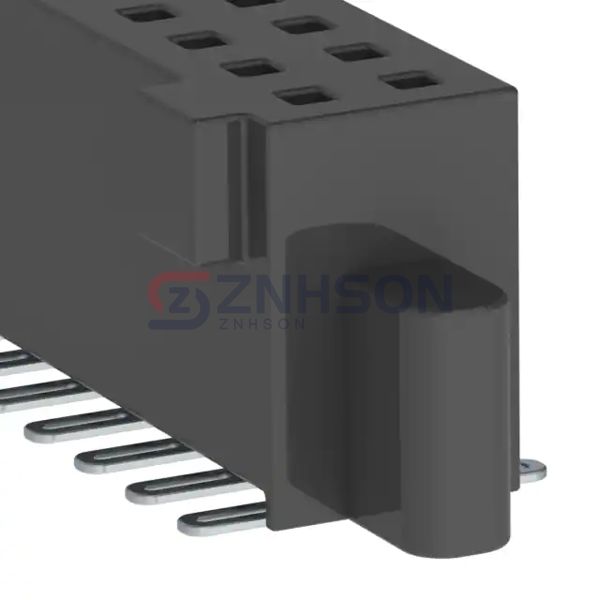

SFM-120-02-H-D-P-TR

Samtec Inc.

Manufacturer

Samtec Inc.

Description:

CONN RCPT 40POS 0.05 GOLD SMD

Datasheet:

SFM-120-02-H-D-P-TR Datasheet

$7.96

Available to order

Reference Price (USD)

125+

$8.27400

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Optimize your electronic assemblies with SFM-120-02-H-D-P-TR Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors provide secure, high-density connections for compact devices and complex systems. With options for surface mount, through-hole, and press-fit terminations, they cater to diverse design requirements. Ideal for wearable technology, test & measurement instruments, and LED lighting, Samtec Inc. connectors deliver consistent quality. Applications include fitness trackers, oscilloscopes, and architectural lighting systems.

Specifications

Product Status: Active
Connector Type: Receptacle
Contact Type: Female Socket
Style: Board to Board or Cable
Number of Positions: 40
Number of Positions Loaded: All
Pitch - Mating: 0.050" (1.27mm)
Number of Rows: 2
Row Spacing - Mating: 0.050" (1.27mm)
Mounting Type: Surface Mount
Termination: Solder
Fastening Type: Push-Pull
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Insulation Color: Black
Insulation Height: 0.185" (4.70mm)
Contact Length - Post: -
Operating Temperature: -55°C ~ 125°C
Material Flammability Rating: UL94 V-0
Contact Finish - Post: Gold
Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Ingress Protection: -
Features: Pick and Place
Current Rating (Amps): 3.2A per Contact
Voltage Rating: 250VAC
