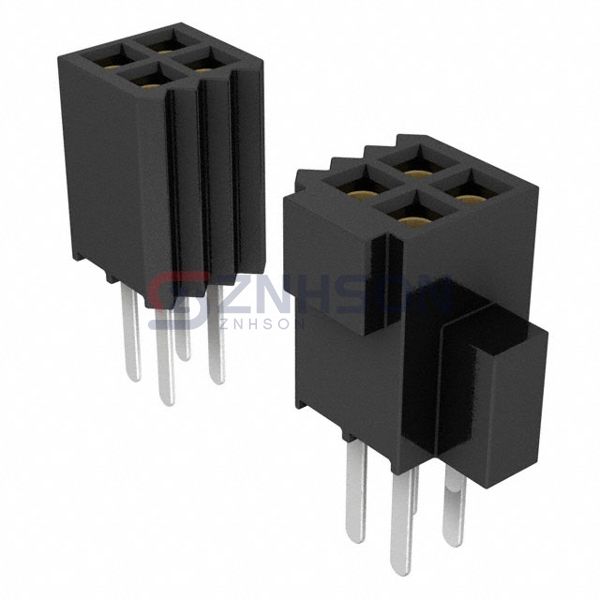

SFM-120-03-S-D

Samtec Inc.

Manufacturer

Samtec Inc.

Description:

CONN RCPT 40POS 0.05 GOLD PCB

Datasheet:

SFM-120-03-S-D Datasheet

$14.40

Available to order

Reference Price (USD)

$7.78000

10+

$7.19700

100+

$6.02950

500+

$5.05700

1,000+

$4.86250

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The SFM-120-03-S-D Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets are designed for precision and reliability in critical applications. Featuring gold-plated contacts, polarized housings, and waterproof options, these connectors excel in marine, oil & gas, and transportation industries. Their robust design prevents misalignment and ensures long-term performance. Examples include underwater sensors, railway signaling systems, and offshore drilling equipment. Choose Samtec Inc. for connectors that meet the highest industry standards.

Specifications

Product Status: Active
Connector Type: Receptacle
Contact Type: Female Socket
Style: Board to Board or Cable
Number of Positions: 40
Number of Positions Loaded: All
Pitch - Mating: 0.050" (1.27mm)
Number of Rows: 2
Row Spacing - Mating: 0.050" (1.27mm)
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Insulation Color: Black
Insulation Height: 0.180" (4.57mm)
Contact Length - Post: 0.075" (1.91mm)
Operating Temperature: -55°C ~ 125°C
Material Flammability Rating: UL94 V-0
Contact Finish - Post: Tin
Mated Stacking Heights: 6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Ingress Protection: -
Features: -
Current Rating (Amps): 3.2A per Contact
Voltage Rating: 250VAC
