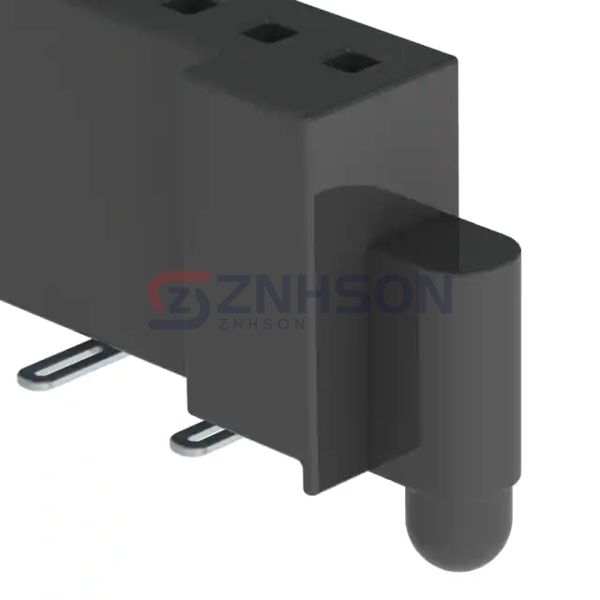

SFM-125-L2-L-S-A

Samtec Inc.

Manufacturer

Samtec Inc.

Description:

CONN RCPT 25POS 0.05 GOLD SMD

Datasheet:

SFM-125-L2-L-S-A Datasheet

$10.89

Available to order

Reference Price (USD)

$7.29000

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The SFM-125-L2-L-S-A Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, Samtec Inc. provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.

Specifications

Product Status: Active
Connector Type: Receptacle
Contact Type: Female Socket
Style: Board to Board or Cable
Number of Positions: 25
Number of Positions Loaded: All
Pitch - Mating: 0.050" (1.27mm)
Number of Rows: 1
Row Spacing - Mating: -
Mounting Type: Surface Mount
Termination: Solder
Fastening Type: Push-Pull
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Insulation Color: Black
Insulation Height: 0.185" (4.70mm)
Contact Length - Post: -
Operating Temperature: -55°C ~ 125°C
Material Flammability Rating: UL94 V-0
Contact Finish - Post: Tin
Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Ingress Protection: -
Features: Board Guide
Current Rating (Amps): 3.2A per Contact
Voltage Rating: 250VAC
