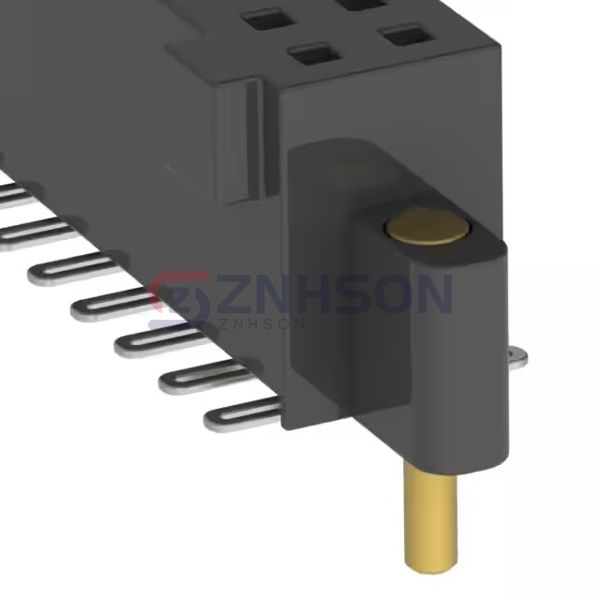

SFM-150-L2-L-D-SN2

Samtec Inc.

Manufacturer

Samtec Inc.

Description:

CONN RCPT 100POS 0.05 GOLD SMD

Datasheet:

SFM-150-L2-L-D-SN2 Datasheet

$25.23

Available to order

Reference Price (USD)

500+

$12.08750

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Upgrade your connectivity solutions with SFM-150-L2-L-D-SN2 Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors are designed for easy integration and long-lasting performance in consumer electronics, security systems, and agricultural machinery. Featuring tool-less assembly, color-coded housings, and IP-rated options, they simplify installation and maintenance. Applications include smart appliances, surveillance cameras, and automated farming equipment. Samtec Inc. connectors deliver the reliability and efficiency your projects demand.

Specifications

Product Status: Active
Connector Type: Receptacle
Contact Type: Female Socket
Style: Board to Board or Cable
Number of Positions: 100
Number of Positions Loaded: All
Pitch - Mating: 0.050" (1.27mm)
Number of Rows: 2
Row Spacing - Mating: 0.050" (1.27mm)
Mounting Type: Surface Mount
Termination: Solder
Fastening Type: Push-Pull
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Insulation Color: Black
Insulation Height: 0.185" (4.70mm)
Contact Length - Post: -
Operating Temperature: -55°C ~ 125°C
Material Flammability Rating: UL94 V-0
Contact Finish - Post: Tin
Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Ingress Protection: -
Features: Solder Retention
Current Rating (Amps): 3.2A per Contact
Voltage Rating: 250VAC
