SFR9230BTM
Fairchild Semiconductor
Fairchild Semiconductor
P-CHANNEL POWER MOSFET
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the SFR9230BTM from Fairchild Semiconductor, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the SFR9230BTM ensures reliable performance in demanding environments. Upgrade your circuit designs with Fairchild Semiconductor's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 200 V
- Current - Continuous Drain (Id) @ 25°C: 5.4A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 800mOhm @ 2.7A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 45 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 1000 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Ta), 49W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: TO-252-3 (DPAK)
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Related Products
Fairchild Semiconductor
FQD12N20TF
Nexperia USA Inc.
PSMN1R5-40ES,127
Panasonic Electronic Components
MTM862270LBF
Infineon Technologies
94-3250
Renesas Electronics America Inc
RJL5020DPK-00#T0
Toshiba Semiconductor and Storage
2SK2916(F)
Infineon Technologies
IRLL014NPBF
GeneSiC Semiconductor
GA20JT12-247
Infineon Technologies

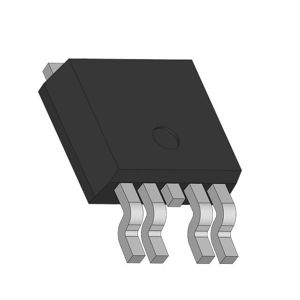

ITD50N04S4L07ATMA1
