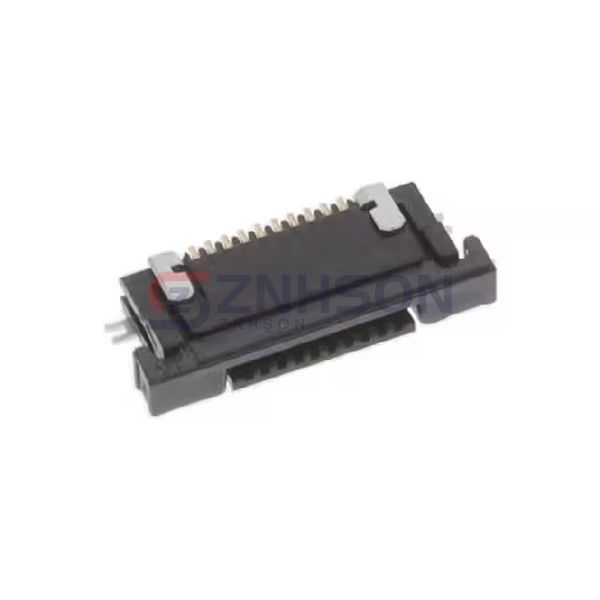

SFV10R-1STBE1HLF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN FFC BOTTOM 10POS 0.50MM R/A
$0.52
Available to order
Reference Price (USD)
6,000+
$0.15555
12,000+
$0.14000
30,000+
$0.13792
60,000+
$0.13481
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the SFV10R-1STBE1HLF FFC/FPC Connectors from Amphenol ICC (FCI), where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The SFV10R-1STBE1HLF series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Amphenol ICC (FCI)'s eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for SFV10R-1STBE1HLF when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 10
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.071" (1.80mm)
- Locking Feature: Flip Lock
- Cable End Type: Notched or Tabbed
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Polyamide (PA), Nylon, Glass Filled, Halogen Free
- Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-0
