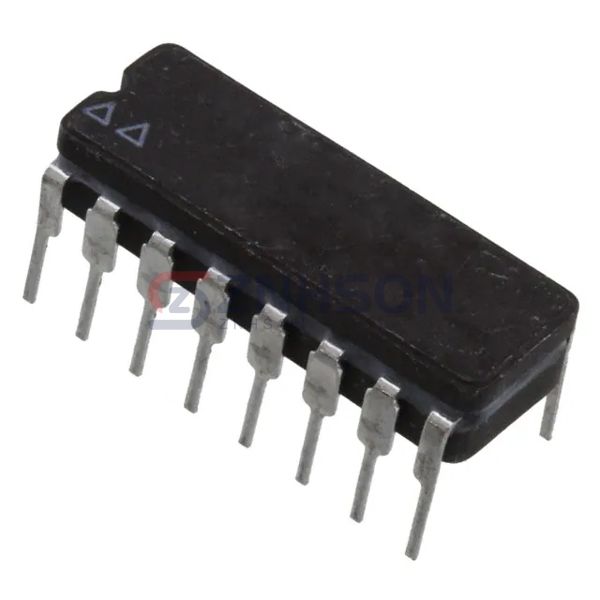

SG2003J
Microchip Technology
Microchip Technology
TRANS 7NPN DARL 50V 0.5A 16DIP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SG2003J BJT Array from Microchip Technology brings military-grade robustness to commercial applications. With a wide operating temperature range (-55 C to +150 C), this Discrete Semiconductor Product performs flawlessly in downhole drilling equipment and satellite subsystems. Its symmetrical layout simplifies heat sink integration for high-power RF amplifiers. The SG2003J undergoes rigorous Q-Class testing to guarantee radiation hardness for aerospace deployments.
Specifications
- Product Status: Active
- Transistor Type: 7 NPN Darlington
- Current - Collector (Ic) (Max): 500mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Vce Saturation (Max) @ Ib, Ic: 1.6V @ 500µA, 350mA
- Current - Collector Cutoff (Max): -
- DC Current Gain (hFE) (Min) @ Ic, Vce: 1000 @ 350mA, 2V
- Power - Max: -
- Frequency - Transition: -
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: 16-CDIP (0.300", 7.62mm)
- Supplier Device Package: 16-CDIP
