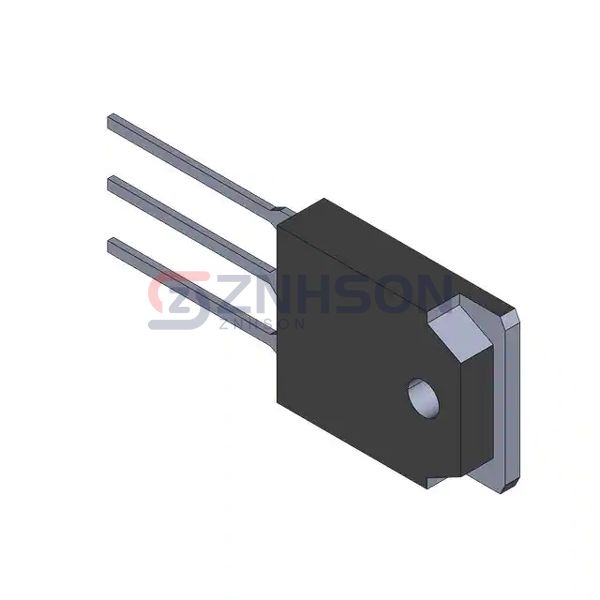

SGH20N60RUFDTU-FS
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 32A, 600V, N-CHANNEL
$2.08
Available to order
Reference Price (USD)
1+
$2.08000
500+
$2.0592
1000+
$2.0384
1500+
$2.0176
2000+
$1.9968
2500+
$1.976
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with the SGH20N60RUFDTU-FS Single IGBT transistor from Fairchild Semiconductor. This Discrete Semiconductor Product is engineered for precision and efficiency, offering superior thermal performance and low EMI characteristics. Ideal for applications like electric vehicle charging stations, renewable energy systems, and industrial automation, the SGH20N60RUFDTU-FS delivers consistent and reliable operation. Trust Fairchild Semiconductor's expertise in semiconductor technology to enhance your power management solutions with this high-quality IGBT.
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 32 A
- Current - Collector Pulsed (Icm): 60 A
- Vce(on) (Max) @ Vge, Ic: 2.8V @ 15V, 20A
- Power - Max: 195 W
- Switching Energy: 524µJ (on), 473µJ (off)
- Input Type: Standard
- Gate Charge: 80 nC
- Td (on/off) @ 25°C: 30ns/48ns
- Test Condition: 300V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 50 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3P
