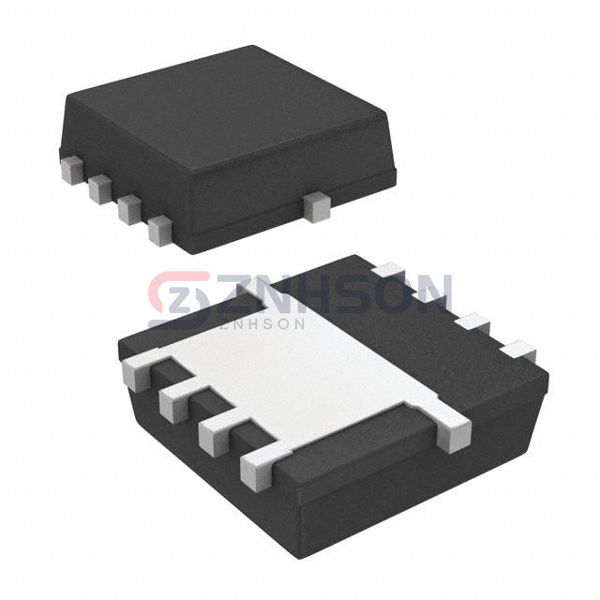

SIS776DN-T1-GE3
Vishay Siliconix
Vishay Siliconix
MOSFET N-CH 30V 35A PPAK1212-8
$0.00
Available to order
Reference Price (USD)
3,000+
$0.46200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the SIS776DN-T1-GE3 by Vishay Siliconix, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the SIS776DN-T1-GE3 is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 35A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 6.2mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 36 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1360 pF @ 15 V
- FET Feature: Schottky Diode (Body)
- Power Dissipation (Max): 3.8W (Ta), 52W (Tc)
- Operating Temperature: -50°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerPAK® 1212-8
- Package / Case: PowerPAK® 1212-8
