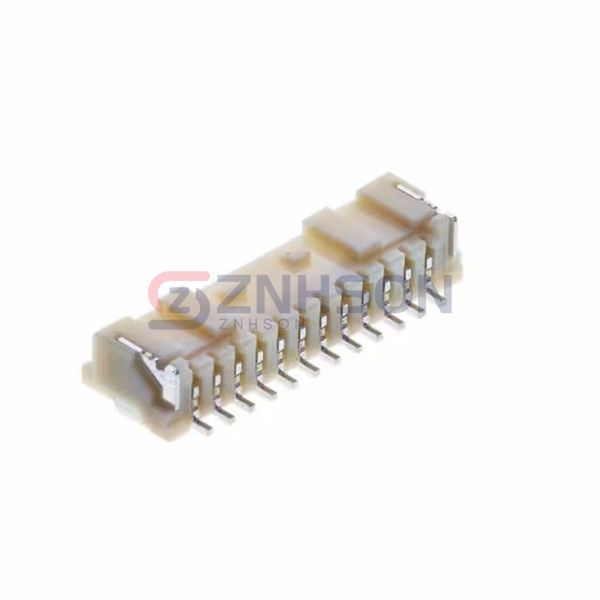

SM12B-PASS-TBT(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER SMD R/A 12POS 2MM
$1.36
Available to order
Reference Price (USD)
1,000+
$0.73458
2,000+
$0.68867
3,000+
$0.66571
5,000+
$0.64276
10,000+
$0.61062
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SM12B-PASS-TBT(LF)(SN) male pin header by JST Sales America Inc. offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose JST Sales America Inc. for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.224" (5.69mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Pick and Place, Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 250V
Related Products
Molex
0022032151
Samtec Inc.
EHF-108-01-FM-D
Preci-Dip
800-10-038-66-001101
Würth Elektronik
61900319521
TE Connectivity AMP Connectors
4-794620-4
Amphenol ICC (FCI)
77311-102-08LF
Samtec Inc.

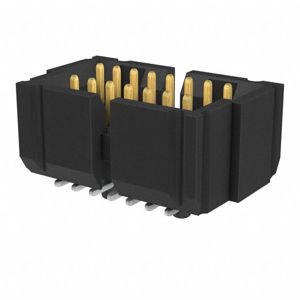

BKT-115-03-L-V-S-A
Preci-Dip

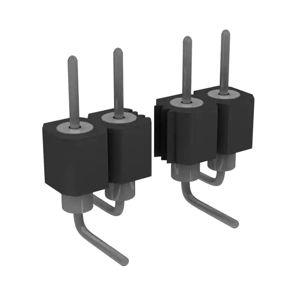

350-80-156-00-106101
Sullins Connector Solutions

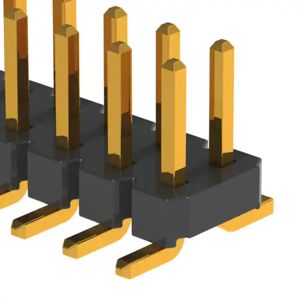

NRPN272MAMS-RC
