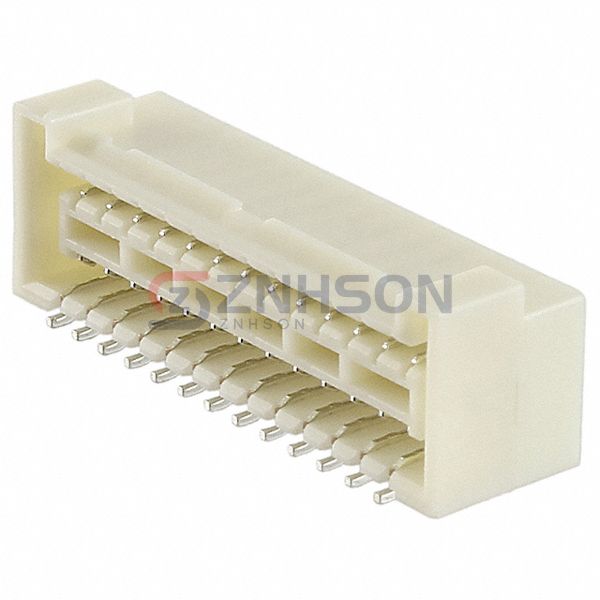

SM26B-ZPDSS-TF(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER SMD R/A 26POS 1.5MM
$2.27
Available to order
Reference Price (USD)
700+
$1.43226
1,400+
$1.22765
2,100+
$1.18673
3,500+
$1.14581
4,900+
$1.08852
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the SM26B-ZPDSS-TF(LF)(SN) rectangular connector header from JST Sales America Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the SM26B-ZPDSS-TF(LF)(SN) is perfect for automotive, industrial, and consumer electronics. JST Sales America Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Outer Shroud Contact
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.309" (7.85mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A
- Voltage Rating: 100V
Related Products
HARTING
09185405904
Samtec Inc.
TSW-109-26-S-S
Samtec Inc.
TMM-140-06-G-S
TE Connectivity AMP Connectors
104895-5
TE Connectivity AMP Connectors
1-292253-4
Samtec Inc.
TSM-108-03-S-SH-P-TR
Amphenol ICC (FCI)
77313-458-10LF
Samtec Inc.
TFC-106-02-F-D-A
Samtec Inc.

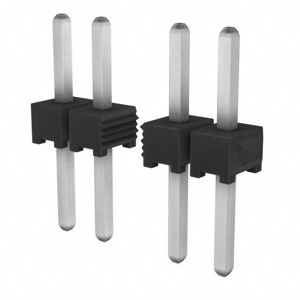

TMM-143-01-T-S
