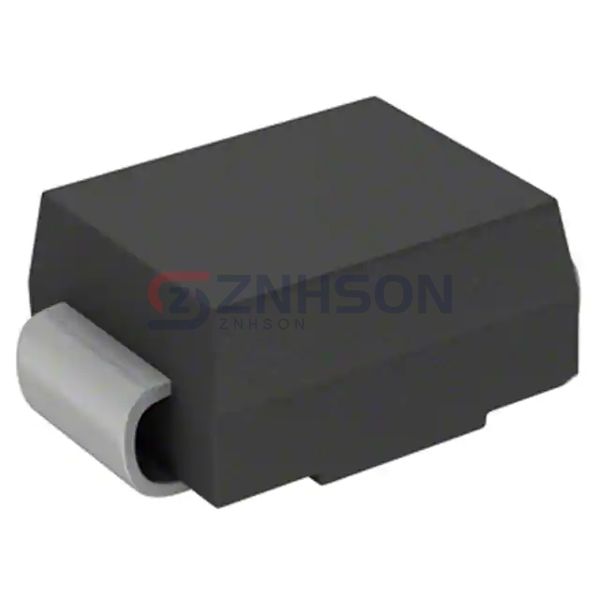

SMAZ15-13-F
Diodes Incorporated
Diodes Incorporated
DIODE ZENER 15V 1W SMA
$0.51
Available to order
Reference Price (USD)
5,000+
$0.09350
10,000+
$0.08525
25,000+
$0.07975
50,000+
$0.07150
125,000+
$0.06875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMAZ15-13-F from Diodes Incorporated is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the SMAZ15-13-F is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 15 V
- Tolerance: ±5%
- Power - Max: 1 W
- Impedance (Max) (Zzt): 10 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 11.4 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA
