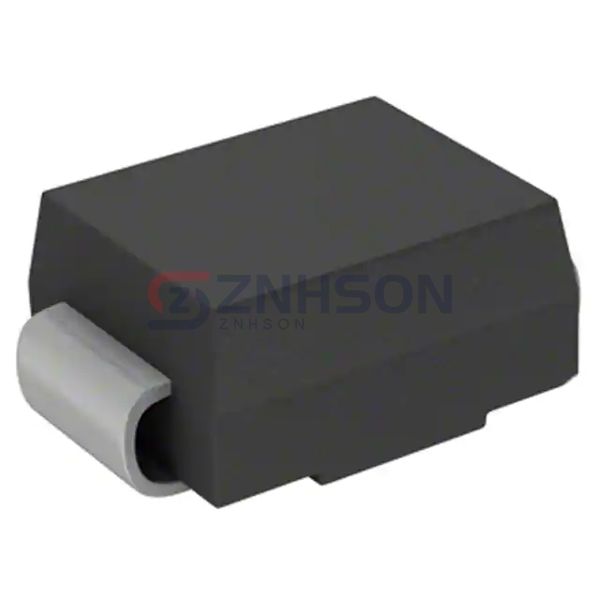

SMAZ22-13-F
Diodes Incorporated
Diodes Incorporated
DIODE ZENER 22V 1W SMA
$0.51
Available to order
Reference Price (USD)
5,000+
$0.09350
10,000+
$0.08525
25,000+
$0.07975
50,000+
$0.07150
125,000+
$0.06875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMAZ22-13-F Zener diode from Diodes Incorporated is a top choice in the Discrete Semiconductor Products category. This single Zener diode is engineered for superior voltage regulation, with features like high power dissipation and low leakage current. It is ideal for applications in telecommunications, where it stabilizes voltage levels in base stations and network equipment. The SMAZ22-13-F is also used in automotive systems, protecting electronic control units from voltage spikes. Additionally, it finds applications in industrial power supplies, ensuring consistent performance in harsh environments. Its reliability and efficiency make it a preferred component in both commercial and industrial electronics.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±5%
- Power - Max: 1 W
- Impedance (Max) (Zzt): 15 Ohms
- Current - Reverse Leakage @ Vr: 500 nA @ 16.7 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA
Related Products
onsemi
1N5347BRLG
NTE Electronics, Inc
NTE5273A
Vishay General Semiconductor - Diodes Division
BZT52B22-E3-18
Vishay General Semiconductor - Diodes Division
BZX384C33-E3-08
Comchip Technology

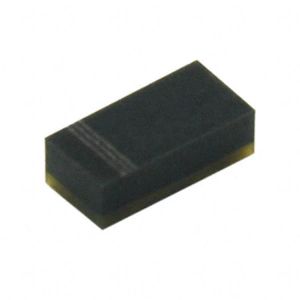

CZRF52C10
Microchip Technology
JAN1N5537D-1
Renesas Electronics America Inc

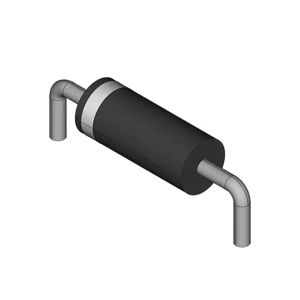

HZS30-1LTD-E
